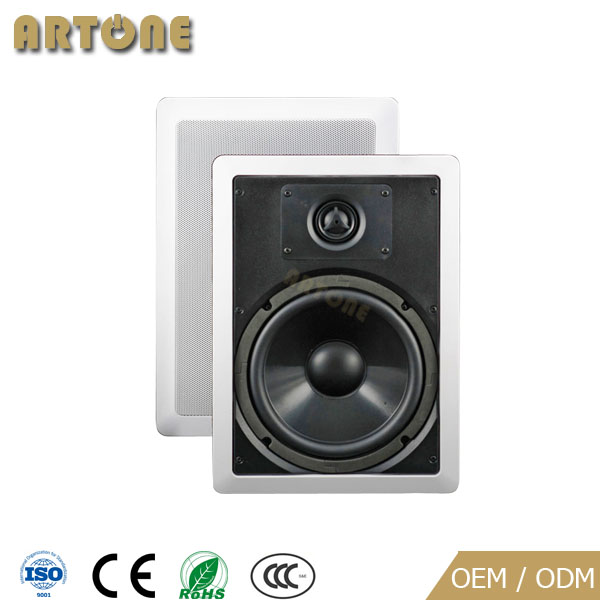

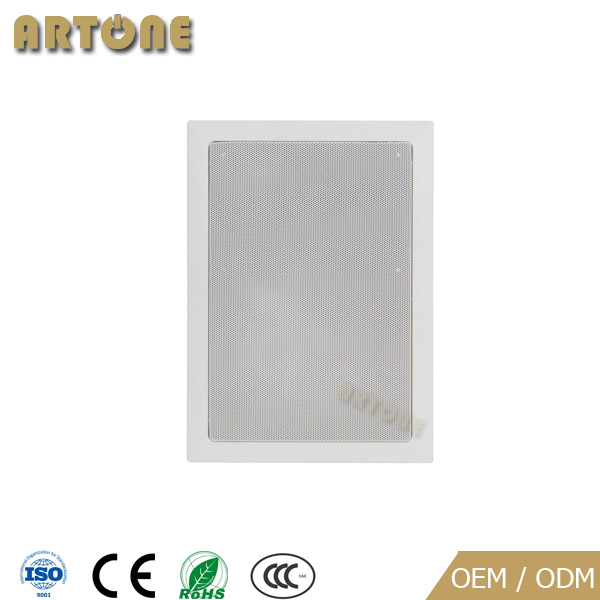

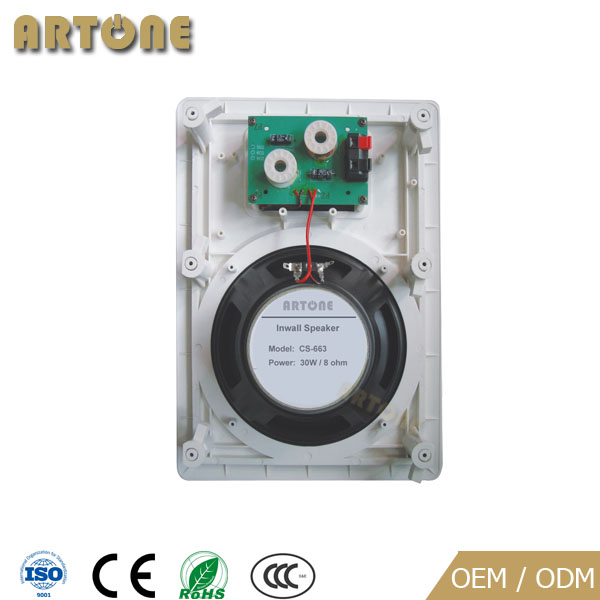

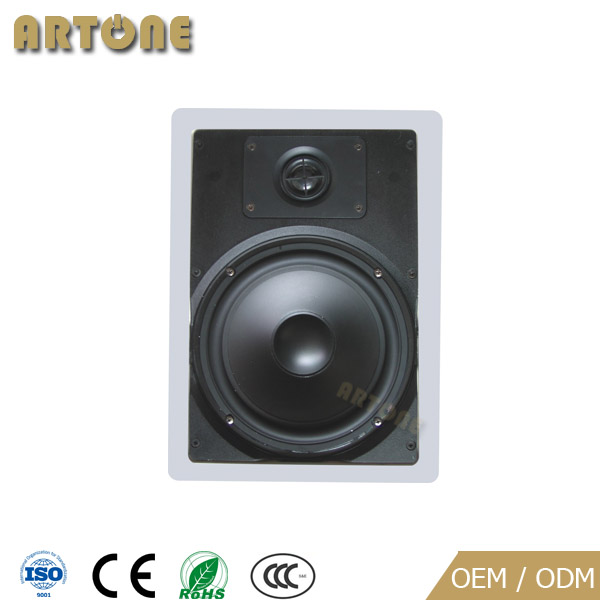

Ceiling mount or inwall speaker, designed in ABS body and rectangular shape, 2-way 4 inch, 5 inch, 6 inch and 8 inch woofer speaker and 1’’ tweeter, rated power 10W, 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt or 8Ω. Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy middle or high level sound system.

Features

4’’ + 1’’ (CS-641) / 5’’ + 1’’ (CS-652) / 6’’ + 1’’ (CS-663) / 8’’ + 1’’ 2-way speaker (CS-684);

Rated power 10 Watts (CS-641), 20 Watts (CS-652), 30 Watts (CS-663), 40 Watts (CS-684);

Input voltage 100 Volt or 8Ω;

Sensitivity 87dB  (CS-641) / 88dB  (CS-652) / 89dB (CS-663) / 90dB (CS-684);

Frequency Response 110~20KHz  (CS-641) / 100~20KHz (CS-652) / 90~20KHz (CS-663) / 80~20KHz (CS-684)

Ceiling mount speaker, dog ear clamp mounting;

ABS material body;

Cutout size 90x115mm  (CS-641) / 245x160mm  (CS-652) / 275x185mm (CS-663) / 325x220mm (CS-684)

Dimension 222x148x68mm (CS-641) / 280x192x75mm (CS-652) / 310x223x85mm (CS-663) / 360x256x100mm (CS-684)

Specification
