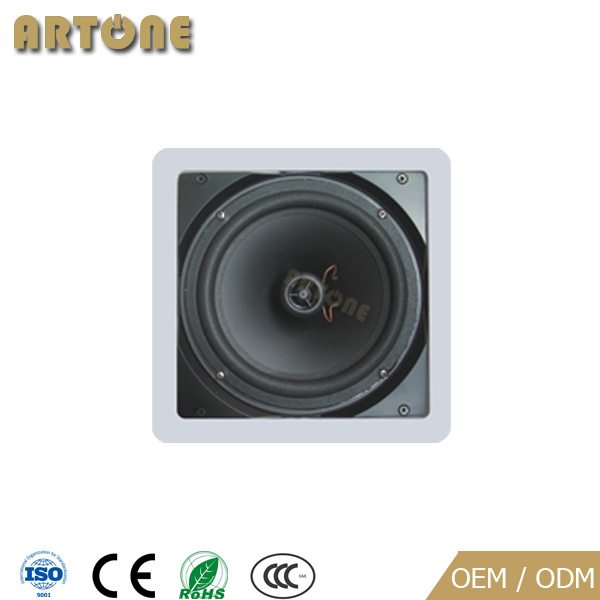

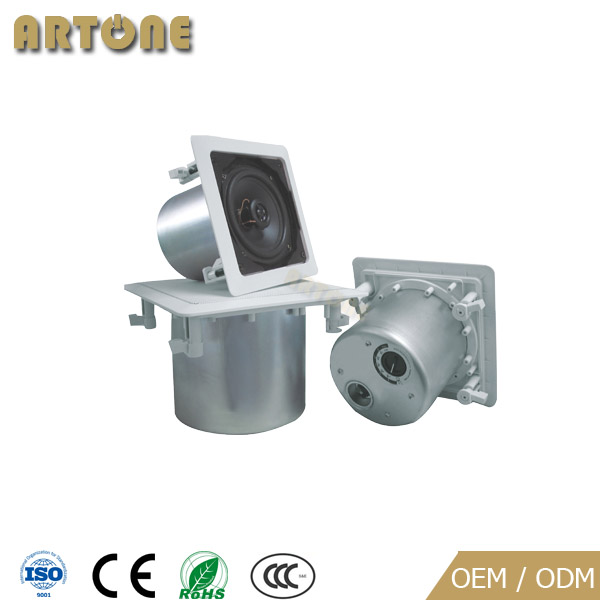

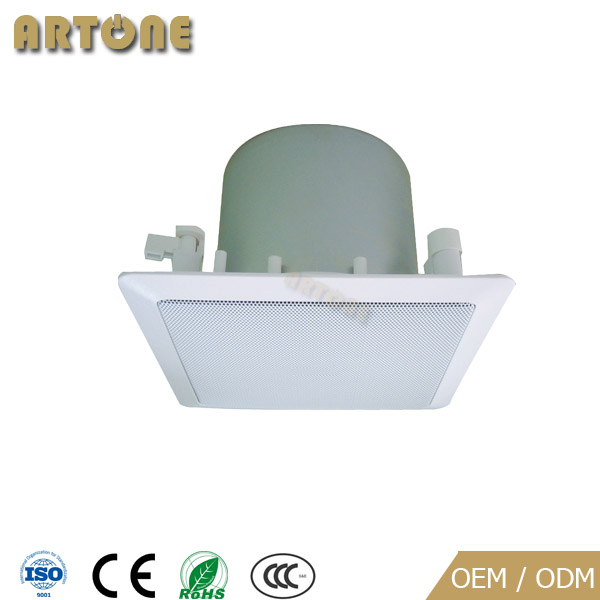

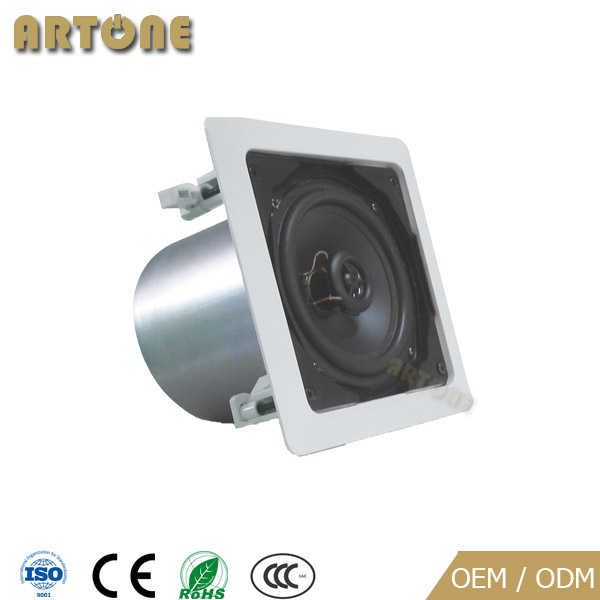

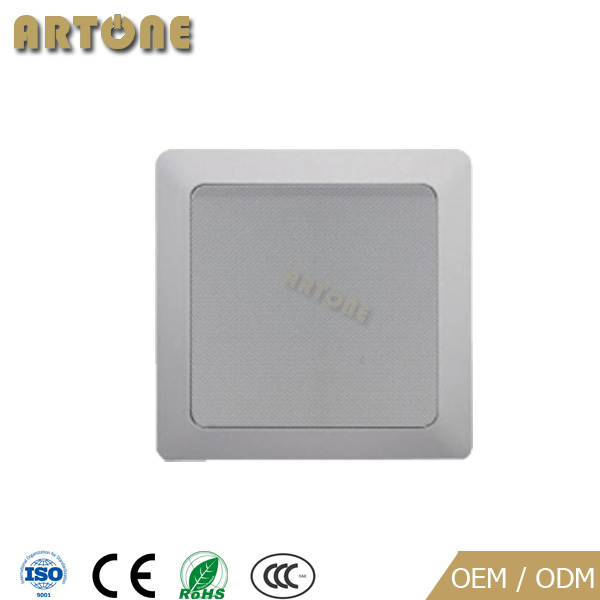

Ceiling mount speaker, designed in ABS square body with back enclosure (fire dome), with coaxial 5 inch, 6 inch and 8 inch speaker, rated power 20W, 30W and 40 Watts, use for commercial audio system or public address system (pa system) of siwtchable input voltage 100 volt or 8Ω, power tabs 1/2 and 1/4 . Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy middle or high level sound system.

Features

5’’ (CS-552D) / 6’’ speaker (CS-563D) / 8’’ coaxial speaker (CS-584D);

Rated power 20 Watts (CS-552D), 30 Watts (CS-563D), 40 Watts (CS-584D);

Input voltage 100 Volt / 8Ω, with power tabs select at 1/2 power, 1/4 power;

Sensitivity 88dB  (CS-552D) / 89dB (CS-563D) / 90dB (CS-584D);

Frequency Response 90~20KHz  (CS-552D) / 85~20KHz (CS-563D) / 80~20KHz (CS-584D)

Ceiling mount speaker, dog ear clamp mounting;

ABS material square frame with metal fire dome;

Cutout size 148x148mm  (CS-552D) / 190x190mm (CS-563D) / 225x225mm (CS-584D)

Dimension 190x190x145mm (CS-552D) / 220x220x160mm (CS-563D) / 255x255x180mm (CS-584D)

Specification
