Professional DSP Audio Matrix Processing Mixer 16x16 ARTONE Sound System PAP1616

ARTONE Professional Audio Matrix Mixer Processor PAP-1616. This series of matrix audio processor is adopt power DSP tech to proceed microphone or line input and audio outputs, it is capable of matrix of 8x8, 16x8 and 16x16 for different application. Plenty of audio parameter adjustments, noise gate, feedback, filter, limiter, delay, mixer, etc. Remote wall keypad connects to processor for easily control. It is perfect to have best sound for gym sound, restaurant music, cafe shop or stage show sound system.

Model:PAP-1616
Power:16 in 16 out, 16x16 matrix processor
Function:Digital audio matrix processor for sound system

Details

Features

Powerful ADI DSP processor for low noise professional audio preamplifier;
Pro SMT circuit design, 24 bit/48KHz A/D, D/A input and output switch;

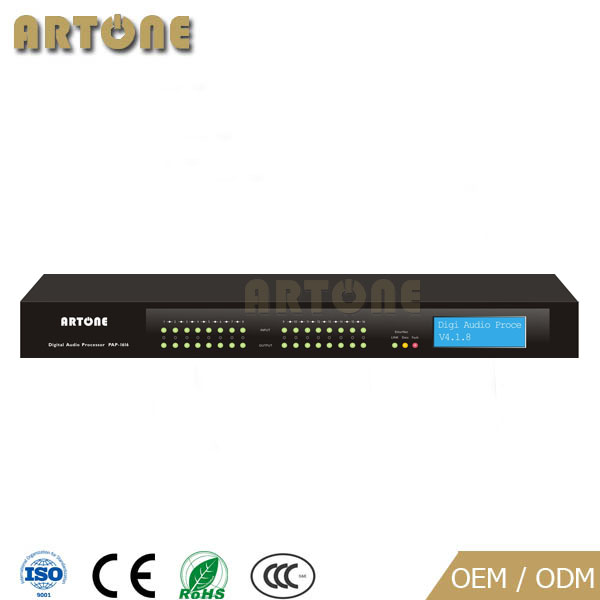

LCD display IP address, gate, firmware;
Matrix balanced 16 Mic/Line input and balanced 16 Output;
Phantom power +48V available for inputs;
Independent feedback supressor for each channel;
Audio noise gate, feedback, filter, limiter, compressor, delay, EQ, mixer adjustments;
16 band of EQ, crossover, low pass filter, limiter, delay parameters for audio outputs;
Software works under Windows 2000/XP/ Windows 7 32bit/64bit;
Protocol RS-232, RS-485, TCP/IP allows thrid party control;
32 preset scene modes;
Flush mount 3.5’’ wall keypad TOUCH86 for remote control of audio processor, and support keypad loop connection for multi-spots control.

Specification

Model	PAP-1616
DSP Frequencies, capacity	ADI DSP-21488 400Mhz ,400MIPS/2200 MFLOP
The core algorithm	Matrix mixing, automatic mixing and echo cancellation
Sampling frequency / quantitative	48 kHz ,24Bit ADC,24Bit DAC
Frequency response	20 Hz – 20 kHz, + /- 0. 2 dB
Dynamic range	114 dB ,ADC, DAC
Total harmonic distortion	<0. 006% (1kHz@+4dBu) \| <0. 005% (20Hz~20kHz@+4dBu)
DSP Frequencies, capacity	400Mhz ,400MIPS,2200 MFLOP
Sampling frequency / quantitative	48 kHz ,24Bit ADC,24Bit DAC

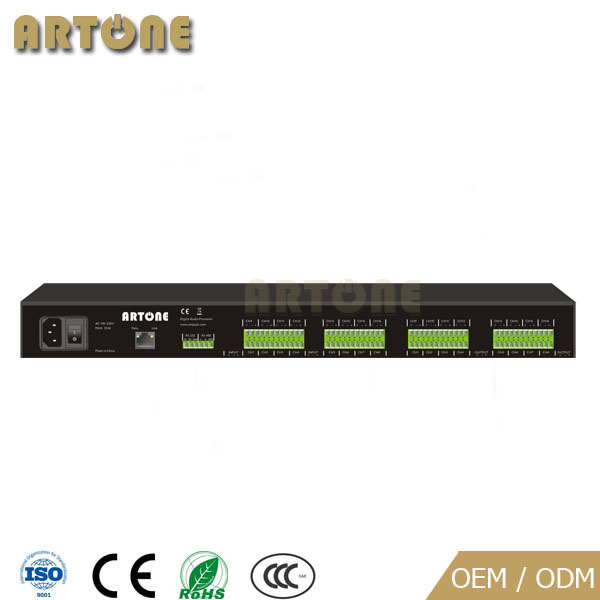

Audio input	16 Channel balanced input, Euro phoenix connector
The default input and output levels	+0 dBu
Microphone preamplifier gain	0 -40 dB analog gain of 12dB digital gain
Maximum input level	+18dBu
Input impedance	>5 k ohm balanced
Output impedance	600 Ω
Common-mode rejection ratio (CMRR)	>70dB @ 1 kHz
Equivalent input noise preamp	<-125 dBu, 22Hz - 22kHz
Phantom power	+48V DC
Audio output	16 Balanced line level road, Euro phoenix connector
Nominal output level	0 dBu Line level
Output impedance	600 ohm balanced
Crosstalk between channels	>-80 dB @ 1 kHz
Dimensions WxDxH	1U ,480 mm x 250mm x 44mm
Power supply	100 ~240VA,50/60 Hz
Work environment	Temperature 40°c

The digital audio matrix mixer PAP-1616 is ideal for high demand of gym sound, restaurant music, cafe shop or stage show sound system application.

Please contact our sales or consultant to set up the excellent audio system for your project, or OEM/ODM from us. Kindly send inquiry to info@ampspk.com, thank you!
