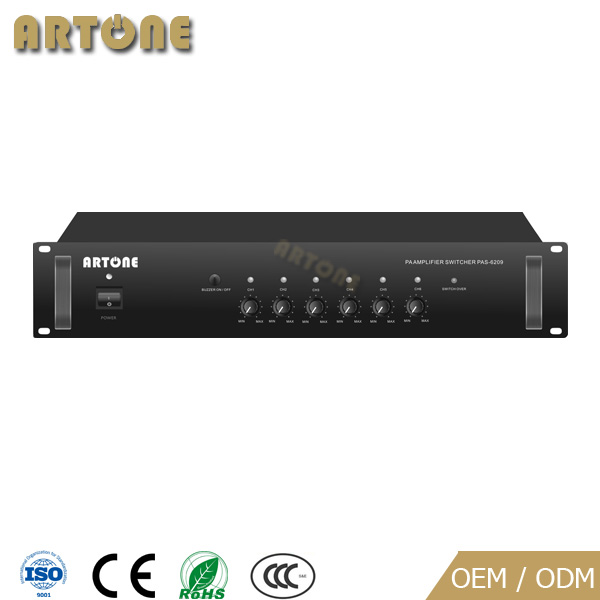

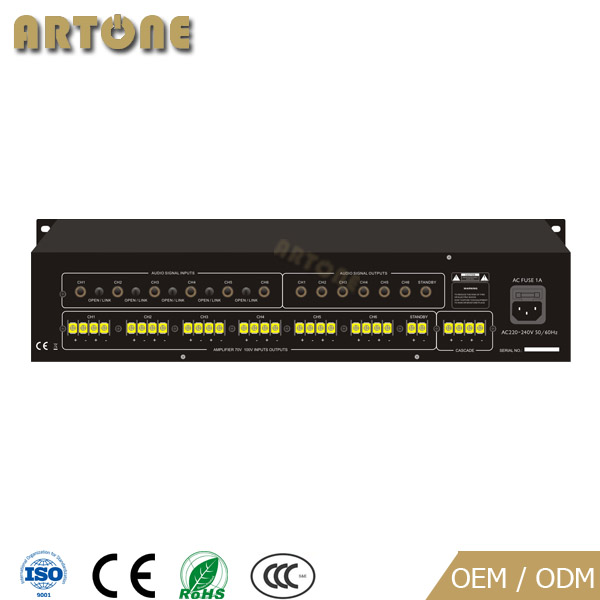

Features
l 6 sets main power amplifiers, 1 set spare amplifier, faulty detection auto shift;
l 6 channels sub audio inputs, each channel volume adjustable independently;
l 6 sets amplifier power output to loudspeakers;
l Auto detect audio amplifier faulty, and auto shift between the main amplifier and spare amplifier.
Specification
|
Model No. |
PAS-6209 |
|
Audio Input |
6 Channel balance / unbalanced |
|
Input Impedance |
10KΩ |
|
Output Detectation |
70V / 100V Line |
|
Detectation Level |
Min 50V rms |
|
Input Test Threshold |
50mV, Test Time Constant is 20mS |
|
Output Test Threshold |
100mV, Test Time Constant is 20mS |
|
Itinerant Test Period |
8 Times Itinerant with 500mS |
|
Control Mode |
Manual/Automatic |
|
Main Amplifier Work Status |
ON / OFF / FLASH |
|
Spare Amplifier Work Status |
ON / FLASH |
|
Power Switch Load |
1000W 70V/100V |
|
Power Consumption |
10W |
|
Power Supply |
AC220V~240V/50~60Hz |
|
Dimension |
485×370×88mm |
|
Weight |
4Kg |
