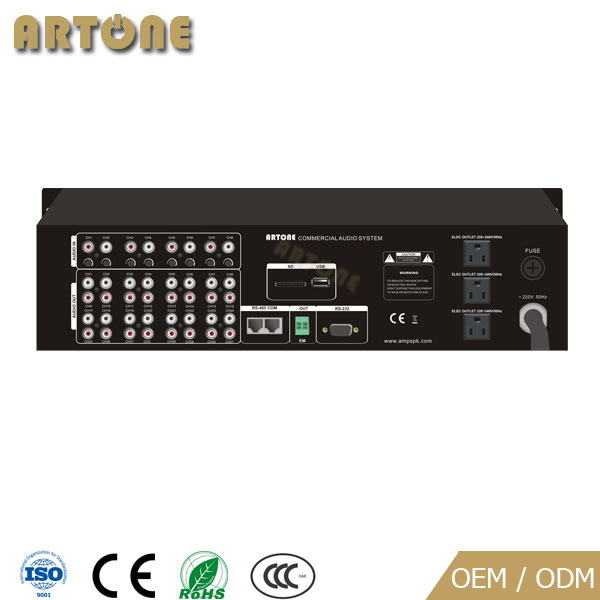

Intelligent Broadcast Center For PA System PAS-2132

  • Model:PAS-2132
Details

Features

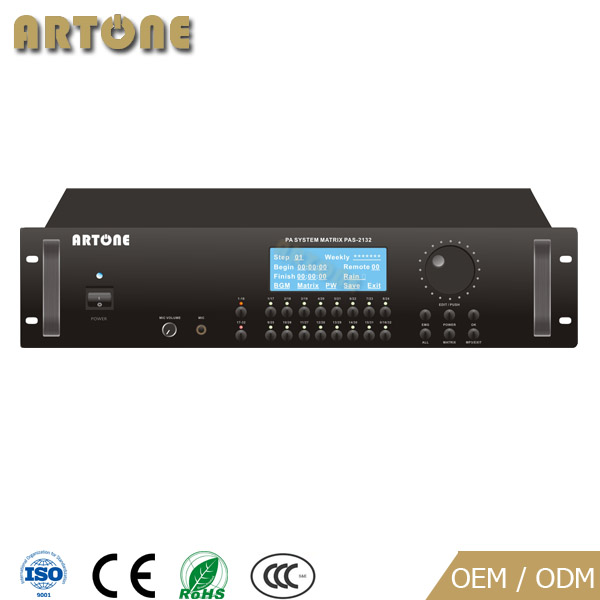

l  Standard 3U height aluminum panel, 4.8" screen display, English edit menu, shuttle button edit function;

l  8 channel audio source inputs, 32 channel audio source matrix outputs, each channel input volume adjustable, can play different programs towards different zones;

l  With one channel MIC input on the front panel, fast select all zones or sub zones paging;

l  Supports USB disk, SD card storage, timing control manually or automatically;

l  Manually or automatically control DVD, MP3, Tuner sources and forced-switch power supply, monitor, zone controller, power sequence management and other peripheral equipment;

l  Fire alarm function, alarm area auto identify, N±1 … N±5 multiple alarm modes setting;

l  The system can edit four sets of timing schedule, each schedule able to edit 99 programs, the programs can be copied to other seasons and weeks;

l  There are power switch, all zones paging, sub zones paging, audio sources control, matrix shift and other shortcut keys;

l  Supports remote paging console, can remotely control the system power, matrix zone and audio sources, and connect 8 sets paging MIC, distance up to 1KM;

l  It configures wireless remote control kit, preset 12 programmable buttons; can remote control (about 1KM) the system, such as power management, sub zones control, MP3 playing, etc.

l  It designed three level security priorities: fire alarm is the top priority, remote paging is prior to background music;

l  Zone output through signal matrix amplifier, when one of zone amplifier in faulty, other zone amplifiers still can work;

l  With memory function, program will not be lost when it’s power off, automatically resume when it’s power on again;

Specification

Model No.

PAS-2132

Built-in Audio Source

USB, SD card

MP3 Frequency Response

20~20KHz/±1dB

MP3 S/N

95 dB

Audio Output

1KΩ/1V unbalanced

Communication Speed

9600bps

Std Communication Protocol

RS-422

Std Communication Port

RJ45

Alarm Input

Short-circuit(0V)

Screen Display & Resolution

4.8’’ display & 192x64 res

Zones

32 Channel

Voltage Input

AC220V-240V/50Hz-60Hz

Voltage Output

AC220V-240V/50Hz-60Hz

Power Output

Sum is 500VA, Single line 500VA

Power Consumption

20W

Dimension

485*375*132mm

Weight

6.9Kg
