Loudspeaker Management 4/8 DSP Processor PAP-480

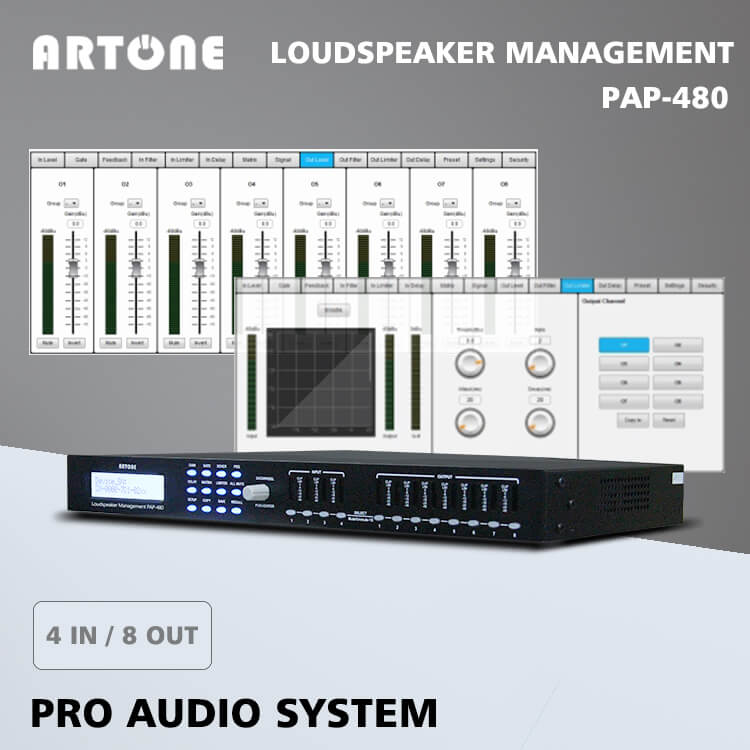

The DSP processor PAP-480 is a powerful loudspeaker management for professional audio system. It aims to provide state-of-art sound signal processing, while utilizing simple and intuitive interface on PC.

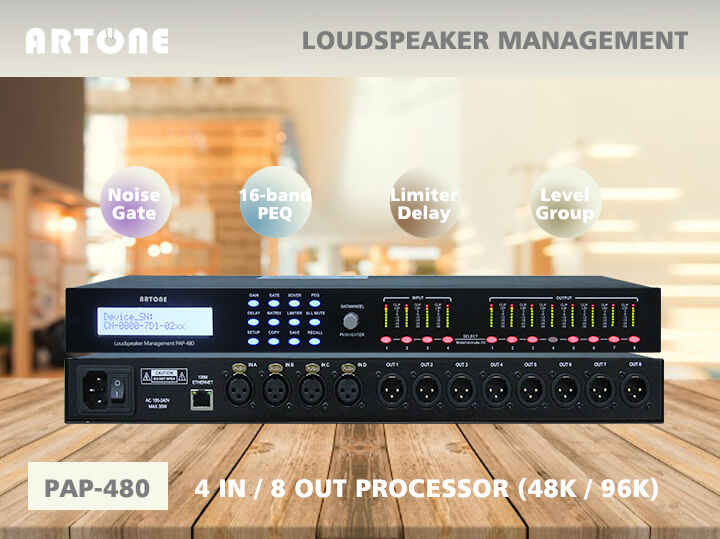

Digital audio processor PAP-480 is a professional 1U rack design versatile DSP loudspeaker management device with control of 4 inputs and 8 outputs. 4 bus XLR inputs lead pre-amplifier or audio sources to signal processing and generate to 8 outputs XLR to power amplifiers or further devices. It is able to give detail adjustment of 16 bands filter to in and out signal, gain control, noise gate, limiter, pink and white noise buzzer and delay effect setting.

The PAP-480 has 32 preset modes, and user-friendly intuitive operation software makes easy access to mandatory parameter of commercial and pro acoustical system.

it is ideal to use in various places like high level brand shops, coffee or wine bars, fitness club, conference meeting room, conventional hall, mosque, offices, multimedia schools, etc.

Features:

- Standard 1U rack mountable design;
- Balanced 4 inputs and 8 outputs control (max 4 outputs by group);
- Understandable software for easy adjustment;
- 32 preset configuration memory management;
- Matrix mixer allows different inputs lead to different outputs;
- 16 bands PEQ control;
- Filter in high pass and low pass, support specific Bessel, Butterworth, Link-Riley;
- Various control on gain level, noise gate, RMS limiter, pink noise and delay;
- Crossover rangement from 6dB/Oct to 48 dB/Oct;
- Mixed out delay up to 256ms (2s on PAP-480 96K-model), and increase/decrease stepping by 0.02ms;
- Floating ADSP-21488 400MHz (PAP-480 48K-model);
- Upgrade firmware of DSP or ARM programs;
- 100M ethernet connection;
- LED indicators show working status;
- Expandable to multiply PAP-480 processor

Specification:

Welcome to contact us for products distribution and OEM/ODM cooperation.
