Tabletop 100V Wall Mount Terminal PA Mixer Power Amplifier with Remote PA-500R

Mixer amplifier PA-500R is a small and compact audio device, it is able to be set as standalone tabletop public address amplifier and wall/ceiling mount amplifier for terminal PA system. It has 2 XLR microphone inputs and 2 AUX inputs. The power 50W for 100V loudspeakers. Wireless remote control for long distance up to 10~30 meters.
  • Model:100V Desktop and Wall Mount PA Mixer Amplifier PA-500R
  • Power:50W (70V / 100V / 8 ohm)
  • Function:Tabletop and wall mount amplifier with remote
Details

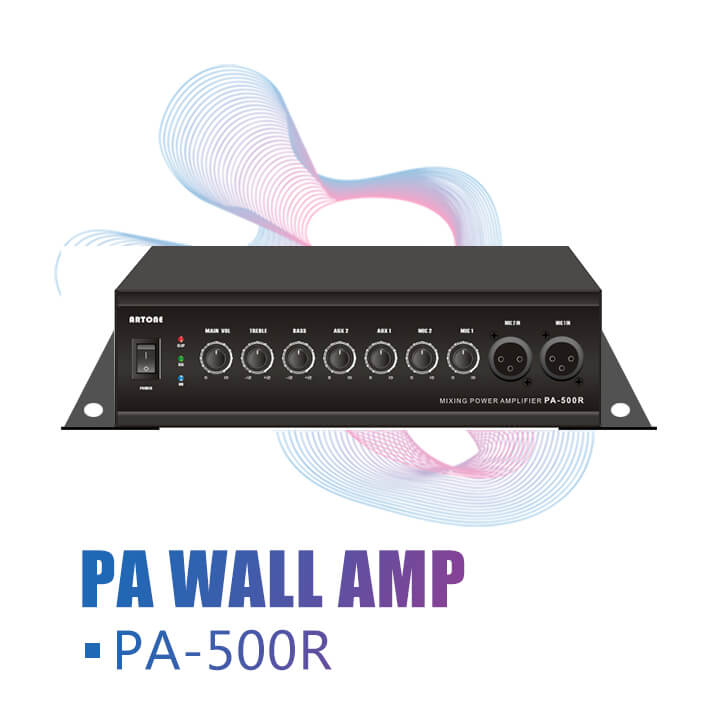

100V Tabletop & Wall Mount Terminal PA Mixer Amplifier PA-500R


ARTONE tabletop and wall mount mixer amplifier PA-500R is a versatile audio device for different sound system applications. It is a small and compact design amplifier, that able to be set as standalone desktop amp, and also can be mounted to wall or ceiling for 100v/8ohm terminal PA system.


The mixer amplifier PA-500R features with two balanced XLR microphone inputs and 2 AUX inputs (RCA), one RCA line out available to lead signal to next or external audio booster.


Features:

- Two way use mixer amplifier, compact tabletop set or wall mounting as terminal audio amplifier;

- 70V/100V/8ohm speaker output available for long distance sound transmission;

- RMS 50W power for public address system;

- 2 XLR mic inputs, 2 RCA AUX inputs, 1 RCA output;

- MIC1/2, AUX1/2, treble, bass, main volume control;

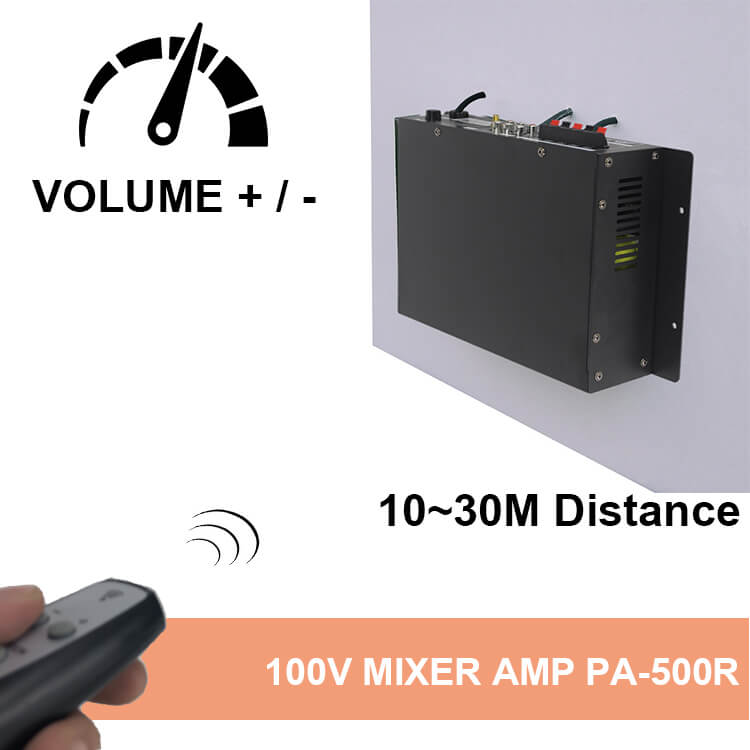

- Remote control max 20-30 meters;

- Short circuit, thermal, clip protection;

- AC power 100~110V or 220~230V 50/60Hz


Specification:

Model No.: 100V Desktop and Wall Mount PA Mixer Amplifier PA-500R
Power RMS 50W
Speaker Output 70v/100v/8Ω
Inputs Balanced 2 XLR microphone (20KΩ) / Unbalanced 2 RCA AUX input (10KΩ)
Frequency Response 60~18KHz
S/N Ratio Mic: 70 dB / AUX: 80 dB
Volume Control Treble, bass, Mic1/2, AUX1/2, master volume
Remote 10~30 meter
Material / Finish Metal / Black color

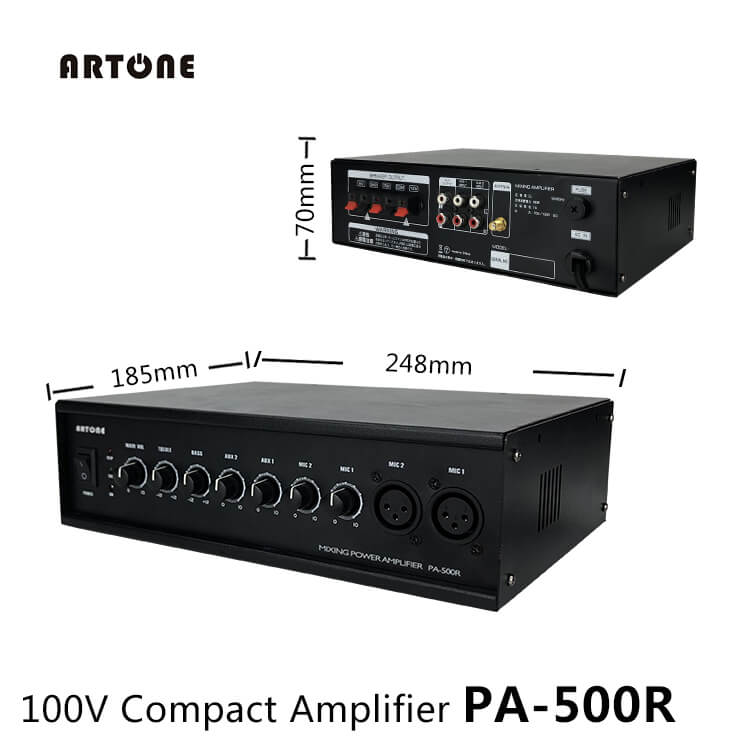

Measurement / Weight 248 x 185 x 70 mm / 5.8kg

Download

ARTONE Mixing Power Amplifier PA-500R Leaflet

China Mixer Amplifier PA-500R Brochure

Public Address 100V System Amplifier PA-500R User Manual
