PD-4200 series Professional 4 Channel Class D Amplifier

1. light weight 1U size 2. 4 Channel

Model:PD-4200 series
Power:4x200W to 4x2000W

Details

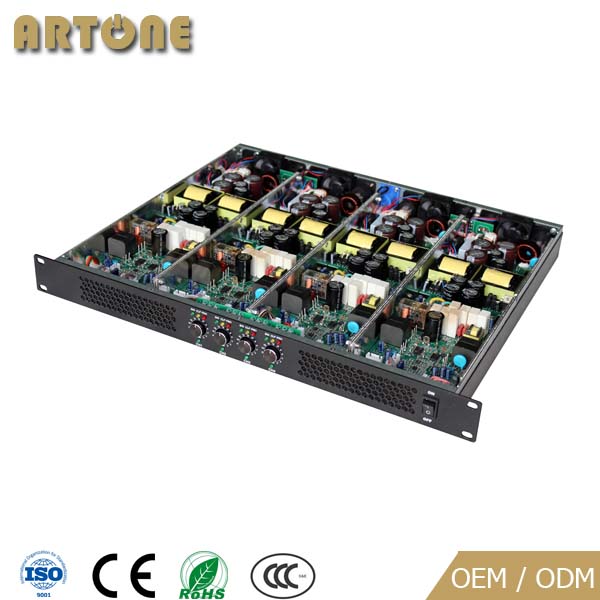

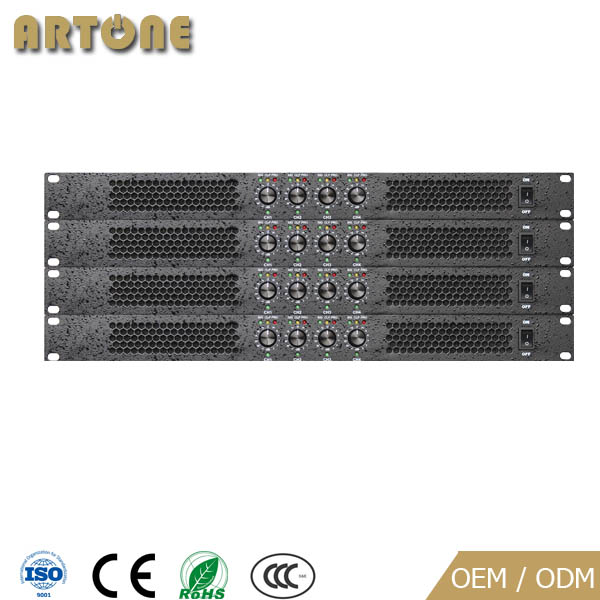

The professional PD series digital amplifier is designed in light weight 1U size with most efficient class D amplifier 4 channel and power range from 4x200W to 4x2000W. It gives perfect sound performance and works reliable. Mono and stereo switch makes it meet requirement of different situation. LED indicators show the status of each channel.

Main Features

Class D amplifier with switch power;

Power range from 200W x 4 channel to 2000W x 4 channel for select;

Good sound performance, work in high efficiency up to 90%;

Reliable design of independent dual / four channel module;

19’’ standard rack install design;

Compact and small at 1U size only;

Mono and stereo switch;

LED indicators for power, signal, clip and overload;

Low EMI, sufficient protection include shortcircuit, overload, over temperature and high frequency protect.

Model No.		PD-4200	PD-4400	PD-4600	PD-4800	PD-4010	PD-4012
Power	@ 8Ω	200W x 4	400W x 4	600W x 4	800W x 4	1000W x 4	1200W x 4
	@ 4Ω	350W x 4	700W x 4	1000W x 4	1400W x 4	1600W x 4	2000W x 4
Output Voltage		40V	57V	70V	82V	90V	98V
Input Sensitivity (1KHz)		Balanced 1V
THD (1/8 power, 1KHz)		0.01%
Frequency Response (20-20KHz)		0.5dB
Input Impedance		Balanced 20KΩ, Unbalanced 10KΩ
S/N Ratio		100 dB
Channel Separation		80 dB
Damping Factor		400
Type / Class		Class D amplifier
Protection		shortcircuit, overload, over temperature and high frequency
Power Supply		220-250V (45-65Hz)
Cooling Method		Fan sink, variable speed
LED Indicator		Power, Signal, Clip, Protect
Audio Input / Output		XLR Input / Speakon Output
Measurement		483 x 390 x 44 mm
Weight		5.8 KG	7.5 KG	8.5 KG	9.8 KG	10.6 KG	12 KG
