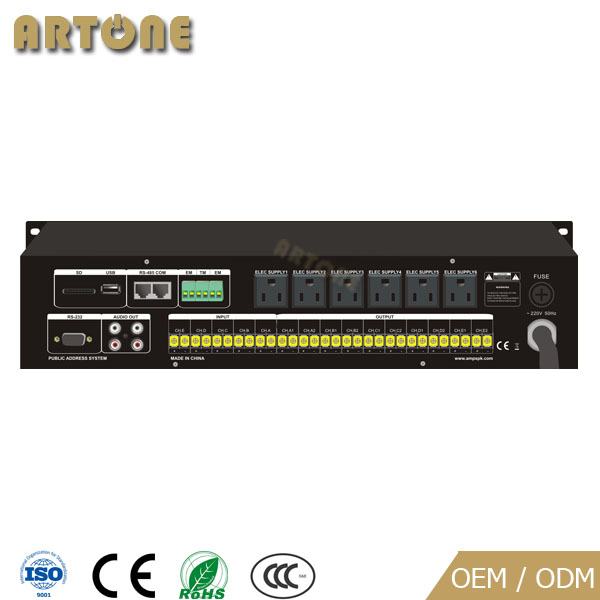

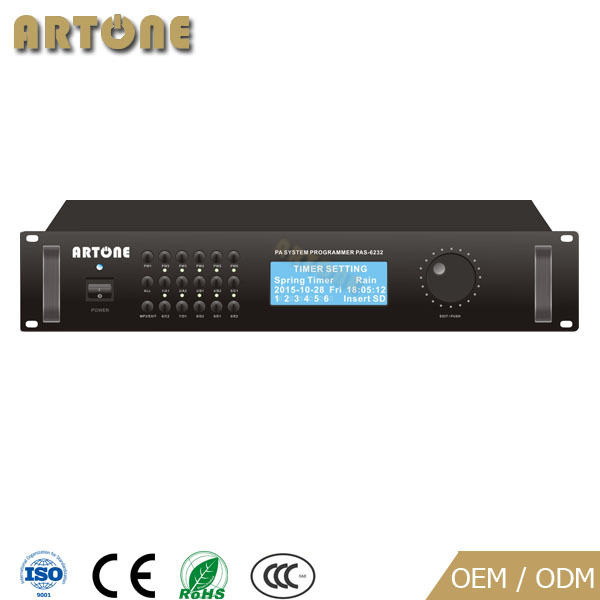

Programable PA Host PAS-6232

  • Model:PAS-6232


Standard 2U height aluminum panel, 4.8" screen display, English edit menu, shuttle button edit function ;
 The system can edit four sets of timing schedule, each schedule can program 99 time periods, the program can automatically repeat by seasons and weeks;
 Built-in 5-channel amplifier inputs, 8 channel zone output management, supports five groups one input multiple outputs zone control mode;
 It has short circuit output trigger, able to control power sequencer or other equipments;
 It has one channel short circuit trigger interface, can support automatic fire alarm broadcast towards all the zones;
 Built-in power management, supports U disk, SD card storage, can timing control manually or automatically;
 Powerful external control capability, can manually or automatically control DVD, MP3, Tuner sources and forced-switch power supply, monitor, zone controller, power management and other peripheral equipment;
 Supports remote paging, can remotely control the system and paging broadcast, distance up to 1KM;
  There are power switch, all zones paging, sub zones paging, audio sources control and other shortcut keys;
 It configures wireless remote control kit, can preset 12 programmable buttons; enables remote control (about 1KM) the system, such as power management, sub zones control, MP3 playing, etc.
  Three level priorities: fire alarm is the top priority, remote paging, and background music;
 With memory function, program will not be lost if powered off, it will resume work when it’s power on again;
 With a specific broadcast control software, can be on-line controlled by a pc.


Model No.


Built-in Audio Source

USB, SD card


RS-485 / RS-232

Baud Rate

4800 bps

Communication Interface

RJ45 / 9 pin serial port


Related DVD/Tuner/Monitor/Power Sequencer/Zone Controller/etc



Screen Display & Resolution

4.8’’ display & 192x64 res


Fire alarm > Remote paging>Background music

Power Input

220V~240V 50/60Hz or 110V

Power Supply

6 Channel 220V~240V 50/60Hz or 110V

Material & Finish

Aluminum front panel, metal case


485 x 345 x 88 mm


6 kg
