Best 70V High Ceiling Hanging Pendant Speaker for Outdoor IP55 PA Sound System HS-743

Versatile pendant speaker HS-743 HS-754 HS-765, designed in high quality ABS material, 2 way 4 inch, 5 inch, 6 inch speaker driver, rated power 30W, 40W and 50 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt or power connect to 8Ω. Fast installation with strong mounting bracket. It is durable and practical and very competitive to meet architectural sound system.
  • Model:70V High Ceiling Hanging PA Pendant Speaker HS-743 HS-754 HS-765

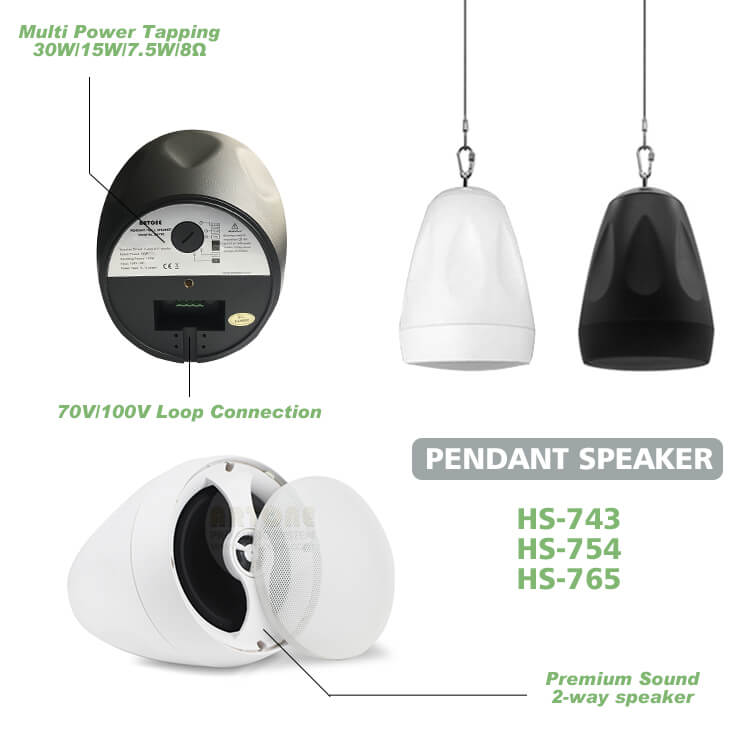

  • Power:Multitap Power 30W/15W/7.5W/8Ω, 40W/20W/10W/8Ω, 50W/25W/12.5W/8Ω
  • Function:Suspending pendant speaker, 70V/100V/8ohm, Wall Mount Kit Option, Premium Sound
Details


Outdoor High Ceiling Hanging Pendant Speaker for PA Sound System (70V/100V Installed Proaudio)

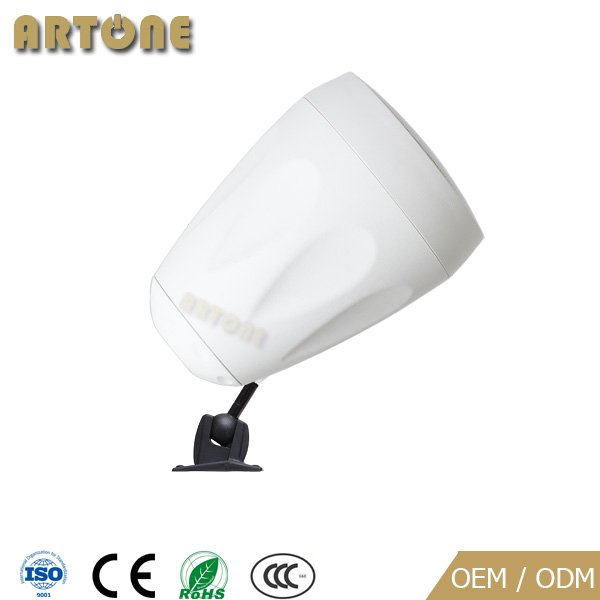

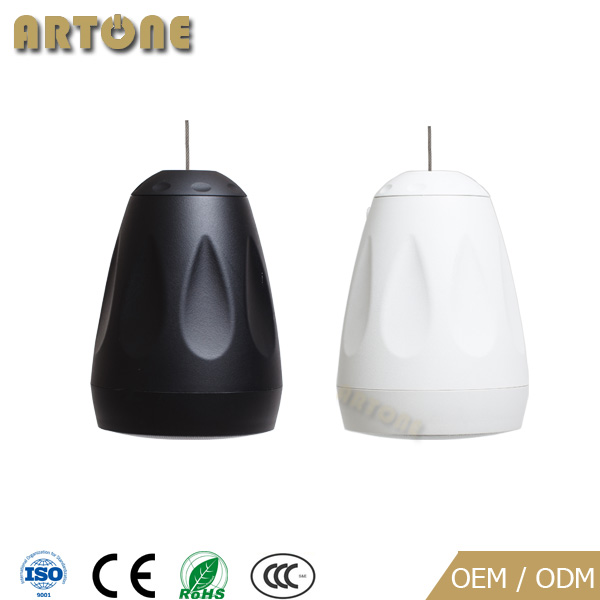

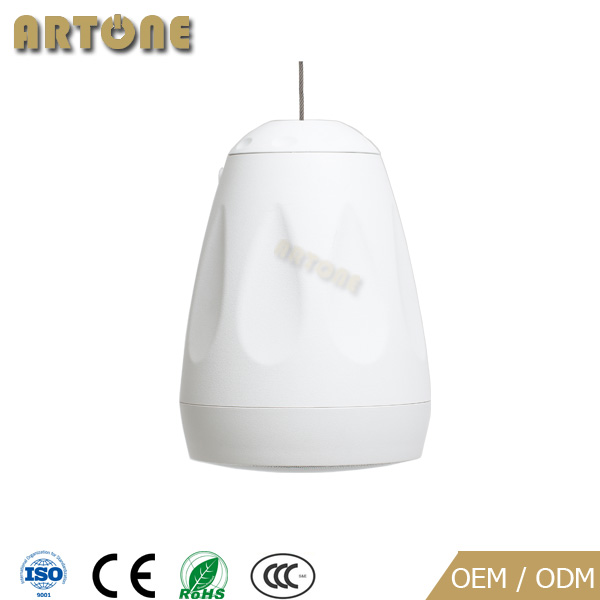

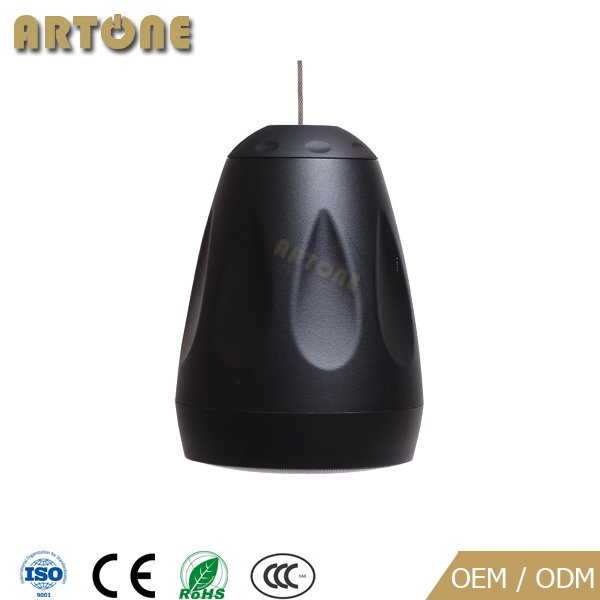

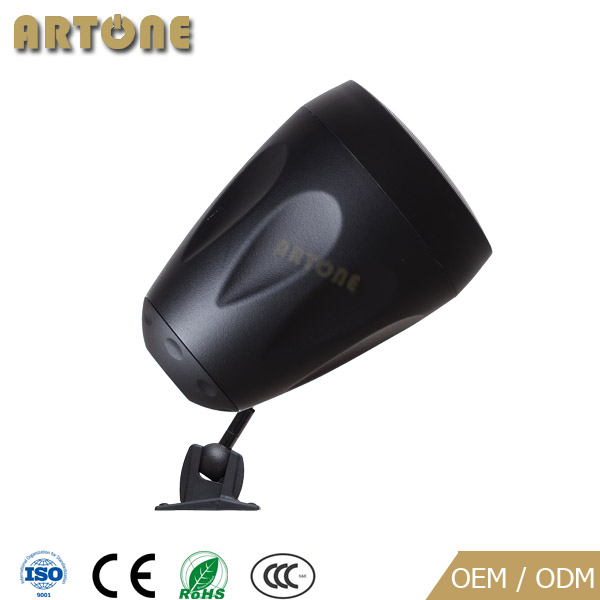

The ARTONE sound system HS-743, HS-754 and HS-765 is a versatile 2-way pendant speaker, designed in high quality ABS material, elegant look for hanging from high ceiling. It also available for wall mounting with optional kits (Model BS-743/BS-754/BS-765).


Pendant speaker HS-743 allows positioning the PA speakers at a lower height even if there's no structural support element at that height. This series loudspeaker (HS-743/HS-754/HS-765) adopted 4-inch, 5-inch and 6-inch woofer, with 1-inch tweeter, delivering relatively higher power 30W, 40W and 50 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt or power connect to 8Ω. Fast installation with strong mounting bracket. It is durable and practical and very competitive to meet architectural sound system.

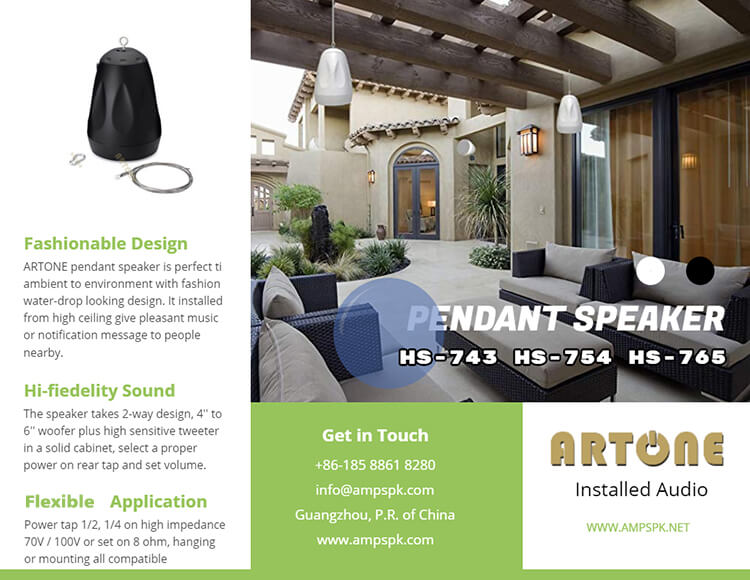

It is built durable and quality enclosure cabinet, that suit both indoor and outdoor applications, premium sound performance covers demanding music and public address areas, like coffee bars, night clubs, restaurants, villas, hotel lobby, gym, swimming pool, sports stadium, etc.



Features

- 4’’+1’’ (BS-743) / 5’’+1’’ speaker (BS-754) / 6’’+1’’ speaker (BS-765);

- Rated power 30 Watts (BS-743), 40 Watts (BS-754), 50 Watts (BS-765);

- Input voltage 100 Volt and 8Ω;

- Sensitivity 90dB  (BS-743) / 91dB (BS-754) / 92dB (BS-765);

- Frequency Response 135~20KHz  (BS-743) / 130~20KHz (BS-754) / 110~20KHz (BS-765)

- Wall mount speaker, or pendant mounting;

- ABS material body, black or white color for option

- Dimension 136x208mm (BS-743) / 155x260mm (BS-754) / 208x300mm (BS-765)

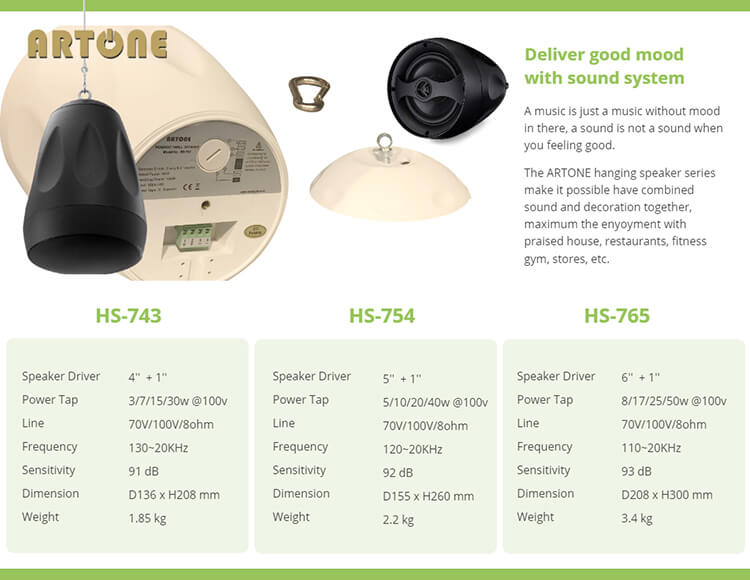

Specification

Model No.

HS-743

HS-754

HS-765

Rated Power & Power Tabs

30W/15W/7.5W/8Ω

40W/20W/10W/8Ω

50W/25W/12.5W/8Ω

Speaker

4’’woofer +1’’ tweeter

5’’woofer +1’’ tweeter

6’’woofer +1’’ tweeter

Input Voltage

70V / 100V Line / 8Ω

Sensitivity

90 dB

91 dB

92 dB

Frequency Response

135-20KHz

130-20KHz

110-20KHz

Mounting Method

Hanging strip or wall mounting bracket

Color

Black / White

Dimension

136x208mm

155x260mm

208x300mm

Weight

1.8 kg

2.2 kg

3.5 kg
