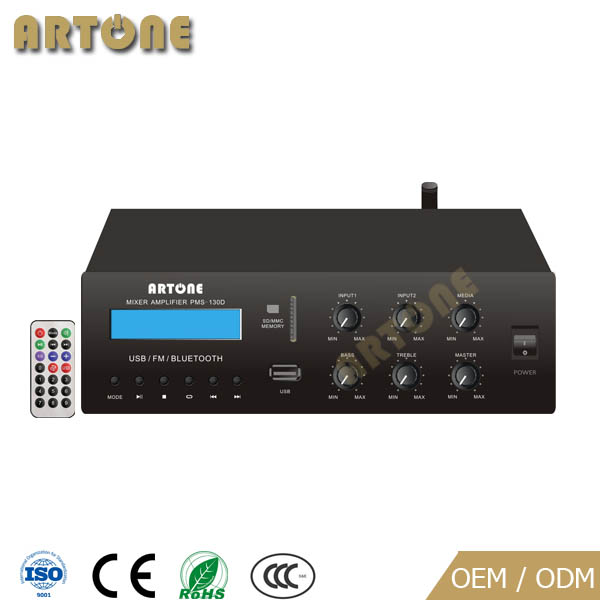

Small Mixer Amplifier with USB/SD/FM Tuner/Bluetooth & DC24V input PMS-130D

Small and compact design, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources; Pure copper transformer drives strong power RMS 30W, max power at 100W;4-16 ohm, 70V, 100V speaker output;Treble, bass, inputs and master volume controlHigh quality copper transformer ensures best sound performance;Shortcircuit, over heat, over load protection;AC 220-240V / 110-120V and DC24V input power supply;Remote controller
  • Model:PMS-130D
  • Power:30W~100W
  • Function:MP3, USB, SD, BLUETOOTH, XLR, DC24V
Details

Features

l  Small and compact design, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs as audio sources;

l  Pure copper transformer drives strong power RMS 30W, max power at 100W;

l  4-16 ohm, 70V, 100V speaker output;

l  Treble, bass, inputs and master volume control

l  High quality copper transformer ensures best sound performance;

l  Shortcircuit, over heat, over load protection;

l  AC 220-240V / 110-120V and DC24V input power supply;

l  Remote controller



Specification

Model No.

PMS-130D

Power

30W, max to 100W power

Speaker Outputs

4-16Ω, 70V, 100V

Input Sensitivity

Mic: 5mV/600Ω unbalanced XLR jack input | AUX:350mV/10KΩ RCA input

Output Sensitivity & Impedance

1000mV/470Ω, Unbalanced RCA output

Frequency Response

60-20KHz

S/N Ratio

Mic: 66 dB | AUX: 80 dB

THD

< 1% at 1KHz, 1/3 rated power

Audio Source

MP3 (USB/SD), Tuner, Bluetooth, AUX/ XLR MIC input x 2

Protection

High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz or 110V / DC 24V supply

Material & Finish

Aluminum front panel, metal case

Dimension

220 x 205 x 70 mm

Weight

4.6 kg
