PMS-1060D 60W hifi commercial mp3 usb mixer amplifier with remote controller

1.mp3 usb mixer amplifier 2.mini amplifier
  • Model:PMS-1060D
  • Power:60w
Details

Features

l  Small and compact design, built-in USB,SD,FM tuner, Bluetooth and 2 external AUX inputs (front 6.3 jack and rear RCA) as audio sources, audio sources switchable from each other;

l  Strong power RMS 60W, max power at 120W;

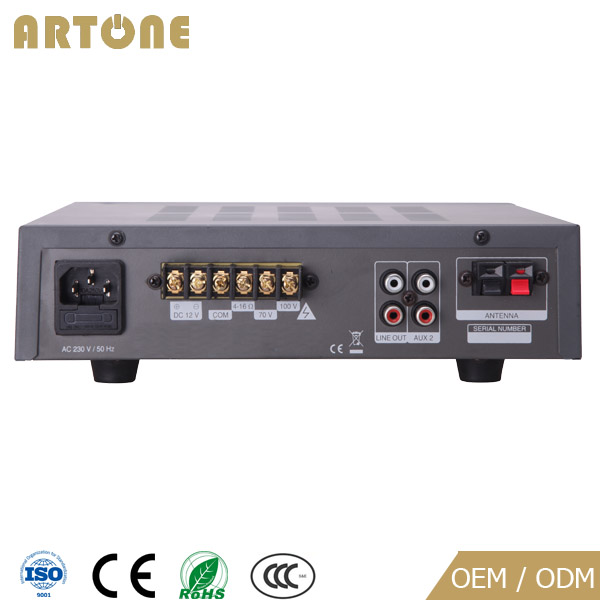

l  4-16 ohm, 70V, 100V speaker output;

l  Treble, bass, mic and master volume control

l  High quality copper transformer ensures best sound performance;

l  Reminder melody chime button;

l  LED indicator, Shortcircuit, over heat, over load protection;

l  AC 220-240V and DC12V input power supply;

l  Remote controller


Specification

Model No.

PMS-1060D

Power

60W

Speaker Outputs

4-16Ω, 70V, 100V

Input Sensitivity

Mic: 5mV/600Ω unbalanced 6.3mm phone jack input | AUX:350mV/10KΩ RCA input

  Output Sensitivity & Impedance

1000mV/470Ω, Unbalanced RCA output

Frequency Response

30-20KHz

S/N Ratio

Mic: 66 dB | AUX: 80 dB

THD

< 1% at 1KHz, 1/3 rated power

Audio Source

MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2

Protection

High temperature, overload & short circuit

Power Supply

220V~240V 50/60Hz or 110V / DC 12V supply

Material & Finish

Aluminum front panel, metal case

Dimension

245 x 240 x 80 mm

Weight

6.2 kg
