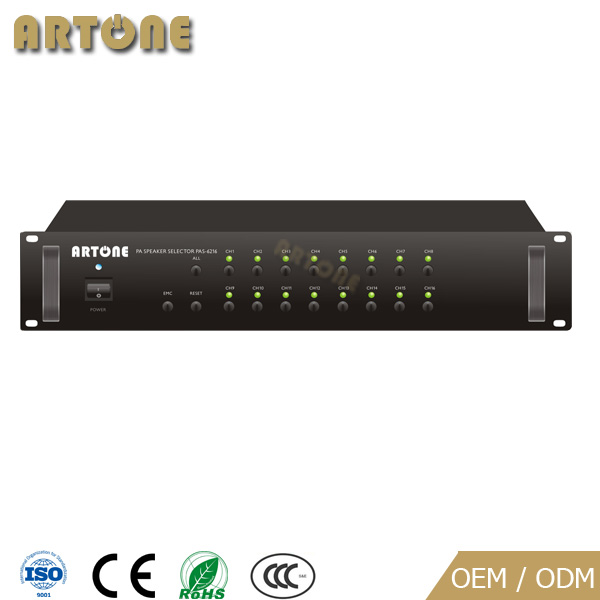

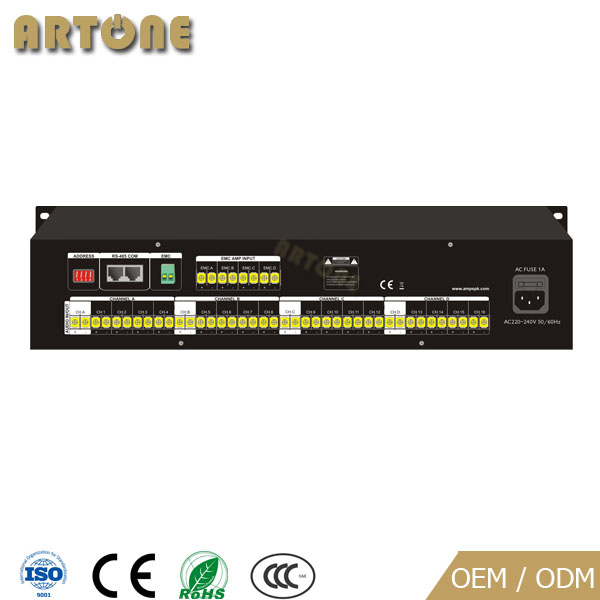

16-Channel Controlled Zone Paging Matrix Controller PAS-6216

Address: Bldg. E, Nanlang Section, Chentian, North Of Baiyun Rd., Baiyun Dist., Guangzhou, Guangdong, China

Tel: +86-20-86262440

Fax:+86-20-62351466

Email:info@ampspk.com

QQ: 2661958752

Skype: artonepro

Wechat linkARTONE

Products

Details

Features

l Microcomputer control, lightly touch buttons, 16 channels matrix output;

l Controlled by intelligent center controller and computer software;

l 8 channels input 1~4 sets background music amplifiers and 4 sets emergency amplifiers;

l Address code is optional, support multiple machines to work together;

l With working areas status display;

l With manually paging/warning signal forced switch, and can reset after warning signal forced switch.

Specification

Model No.	PAS-6216
Input Line	70V / 100V
Output Line	70V / 100V
Zones	16 zones / 4 groups
Audio Output Status	Green light on/off, Red light on/off
Communication Mode	485 Bus
Control Mode	Controlled/Manual
Output Power Capacity	500W/channel 70V/100V line
Power Supply	AC220V~240V/50~60Hz
Power Consumption	10W
Protection	AC FUSE (0.5A)
Dimension	485×370×88mm
NW	7 Kg
