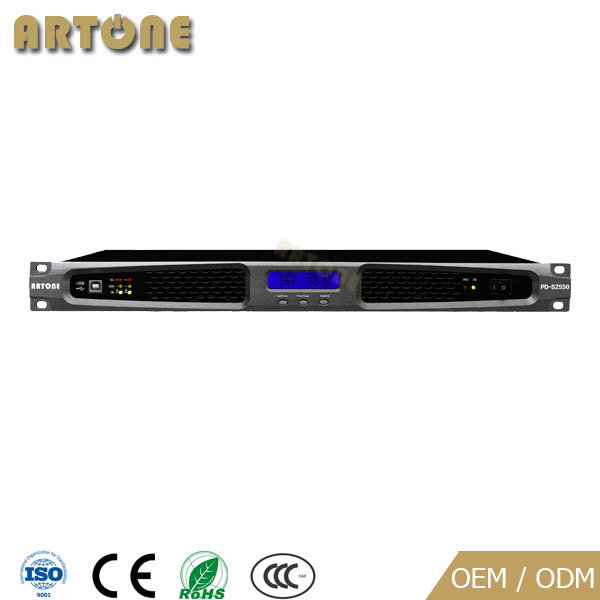

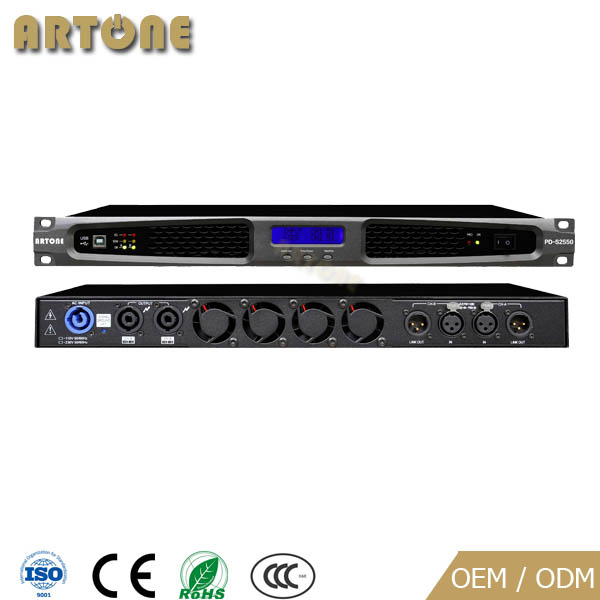

Professional Amplifier 1U 2 Channel PD-S2550 PD-S2650 PD-S2750 PD-S2850

  • Model:PD-S2550 PD-S2650 PD-S2750 PD-S2850
  • Power:2x550W 2x650W 2x750W 2x850W
Details

Features

l  1 U ultra-thin design

l  Class D power amplifier

l  XLR, TRS input connectors

l  Speakon output connectors

l  Each channel has independent Clip Limiter and Low Filter

l  Mono,Stereo and Bridge modes of operation.

l  Reliability design

l  Complete amplifier protection

l  Built in 24Bit Dual Professional Audio Processor


Specification

Model No.

PD-S2550

PD-S2650

PD-S2750

PD-S2850

Output (8Ω1kHz)

2x550W

2x650W

2x750W

2x850W

Output (4Ω1kHz)

2x900W

2x1050W

2x1200W

2x1400W

Bridge(8Ω1kHz)

No bridge function

Frequency Response

 20Hz~20kHz  ±3dB

Total Distortion

1%(8Ω550W)

1%(8Ω650W)

1%(8Ω750W)

1%(8Ω850W)

Input Sensitivity

+4dB * (1.23V)

Input Impedance

10kΩ(Balanced)

S/N Ratio

≥80dB

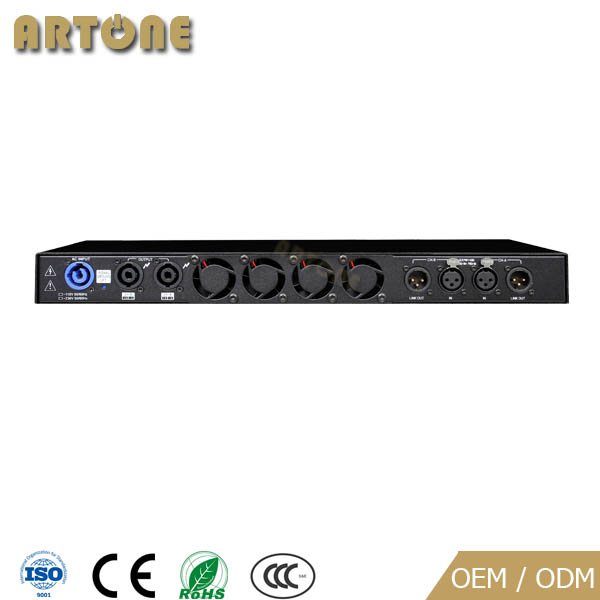

Connector

Input(CH1-2):XLR Input Connector;Output(CH1-2):SPEAKON Output; Power: AC power supply

Indicator Lights

Power Indicator x 1 (Green), Input Indicator x 2 (Yellow), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)

Power Supply Voltage

AC110~120V50/60Hz AC220~240V50/60Hz(Via inside jumping switch)

1/8 Rated Activity Consumed Power

180W

210W

245W

275W

Working Temperature Range

0~50

Working Humidity Range

Under 90% RH But it can not be condensation

Dimensions

483 x 45 x 368(mm)

Net Weight

5.8kg
