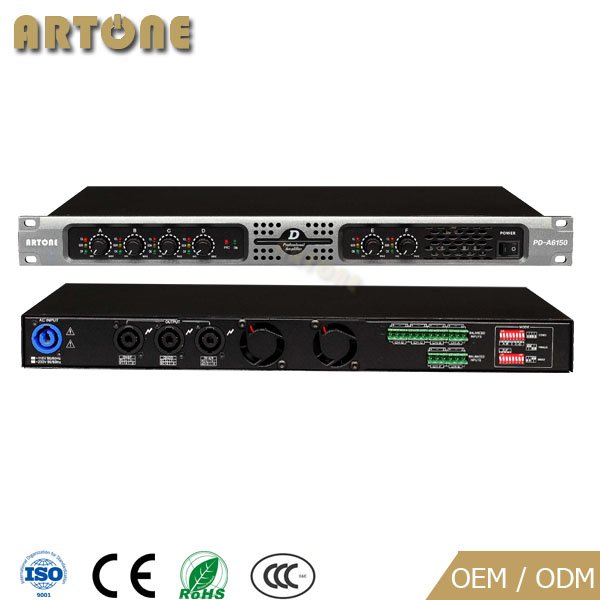

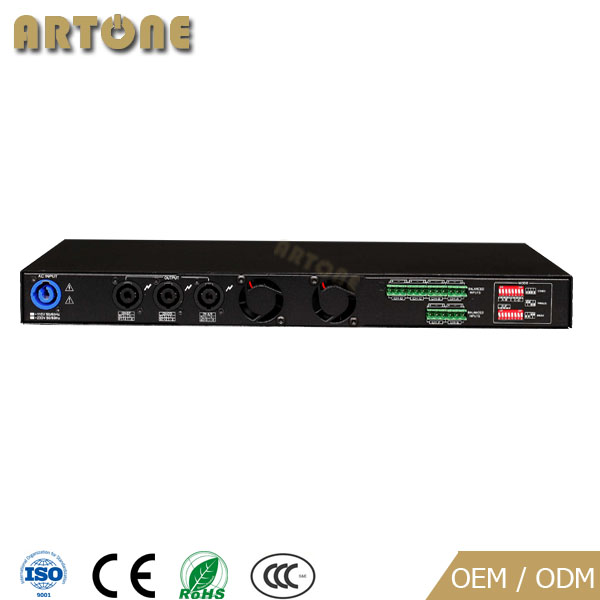

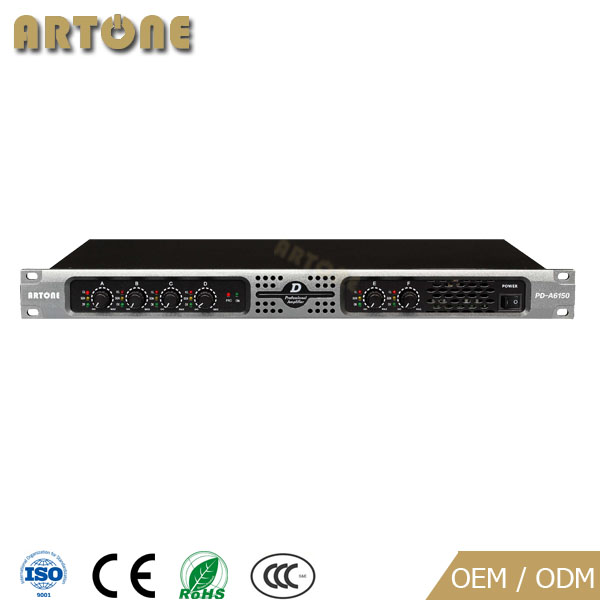

Professional 1U 6 channel amplifier PD-A6150 PD-A6250

  • Model:PD-A6150 PD-A6250
  • Power:6x150W 6x250W
Details

Features

l  Large-capacity switching power amplifier

l  Automatic slicer output short circuit, overload, over temperature, start delay and other Protection

l  Amplifier with delay start system, protect the speakers from shock and damage

l  After the plate is equipped with dual-channel, single channel, the bridge output conversion

l  Balanced inputs

l  SPEAKON output connector

l  483MM standard rack structure

l  Switching power amplifier section has a separate section of the cooling system

l  Cooling fan uses advanced CVT circuit control

l  1U design, body light, easy to carry


Specification

Model No.

PD-A6150

PD-A6250

Output (8Ω1kHz)

6x150W

6x250W

Output (4Ω1kHz)

6x250W

6x400W

Bridge(8Ω1kHz)

3x500W

3x800W

Frequency Response

 20Hz~20kHz  ±3dB

Total Distortion

1%(8Ω150W)

1%(8Ω250W)

Input Sensitivity

+4dB * (1.23V)

Input Impedance

10kΩ(Balanced)

S/N Ratio

≥80dB

Connector

Input(CH1-2):XLR Input Connector;Output(CH1-2):SPEAKON Output; Power: AC power supply

Indicator Lights

Power Indicator x 1 (Green), Input Indicator x 2 (Yellow), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)

Power Supply Voltage

AC110~120V50/60Hz AC220~240V50/60Hz(Via inside jumping switch)

1/8 Rated Activity Consumed Power

100W

160W

Working Temperature Range

0~50

Working Humidity Range

Under 90% RH But it can not be condensation

Dimensions

483 x 45 x355(mm)

Net Weight

5.50kg
