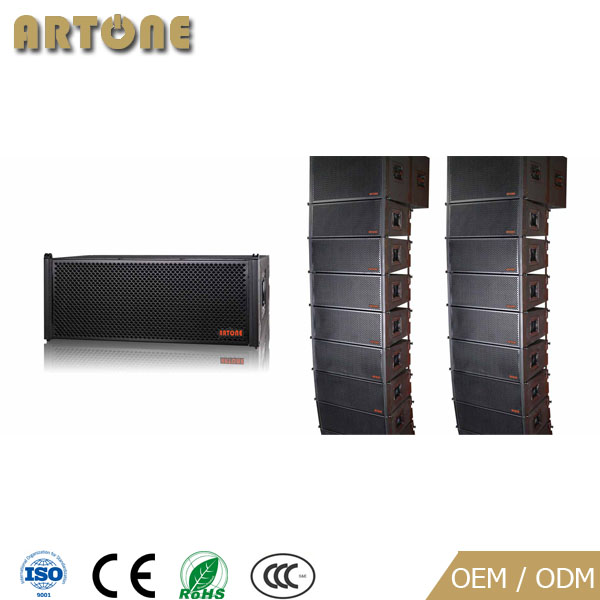

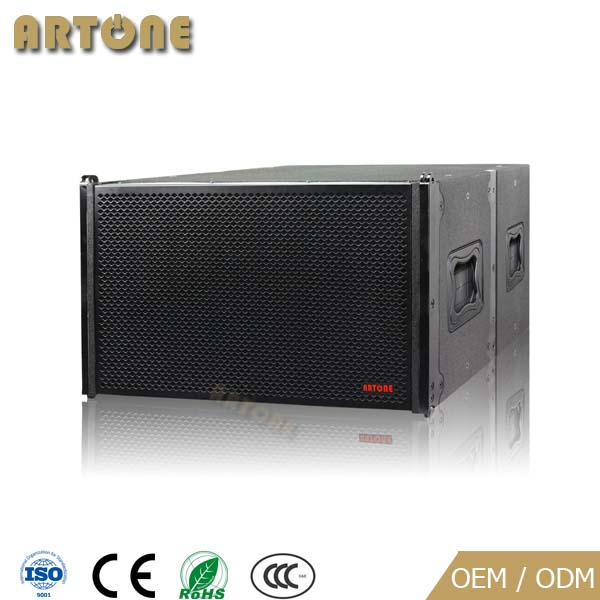

Line Array Speaker AR-210ASUB

  • Model:AR-210ASUB
  • Power:1000W (RMS) 2000W (PEAK)
Details

Details

ARTONE AR SERIES LINE ARRAY SYSTEM caters for sound and fashion through latest technology of audio, acoustic, mechanic in speaker design, hanging structure and sound measurement. Of course an exceptional aesthetic vision can not be spared.
Through serious and deep research, ARTONE proudly introduces its AR SERIES LINE ARRAY & MATRIX ARRAY SPEAKER SYSTEM. The advanced technologies which are widely applied together with special optimization technique results in an excellent performance and high efficiency. To design an array system requires perfect grasp of sophisticated directivity analysis and radiation control. It needs also an overall prediction and accurate measurement of standing waves, resonance and vibrations of speakers and the metal facilities. Even it’s quite challenging, ARTONE engineers know it fairly well.

Applications
Medium-large scale venues including stadium, concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques, touring show, rental market etc.



Features

l  DUAL 15’’ subwoofer in bass reflex enclosure

l   Ideal SPL and dynamic sound

l  High sensitivity

l  Very small housing and lightweight designed

l  Innovative hanging sections for easy hanging and installation

Specification

Model No.

AR-210ASUB

Frequency Response

38Hz150Hz ± 3dB

Power handling

1000W (RMS) 2000W (PEAK)

Sensitivity

110dB(1W@1M)

Max@S.P.L.

140dB(PEAK/1M)

LF section

2×15"(380mm) woofer

Nominal impedance

4 ohm

Speaker cables

1(+)1(-)

Input connectors

2×NL4MP speakon

Dimensions

709×432×760mm(W×H×D)

Package dimensions

780×500×830mm/0.32cbm

Enclosure

Plywood

Net weight

64kg

Gross weight

67kg
