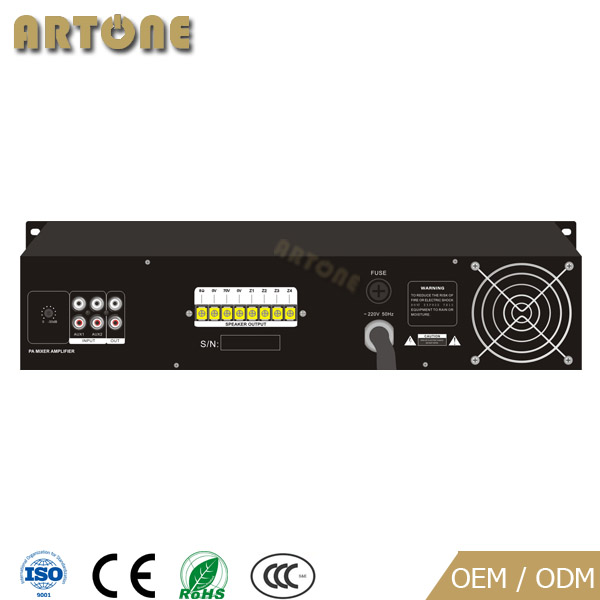

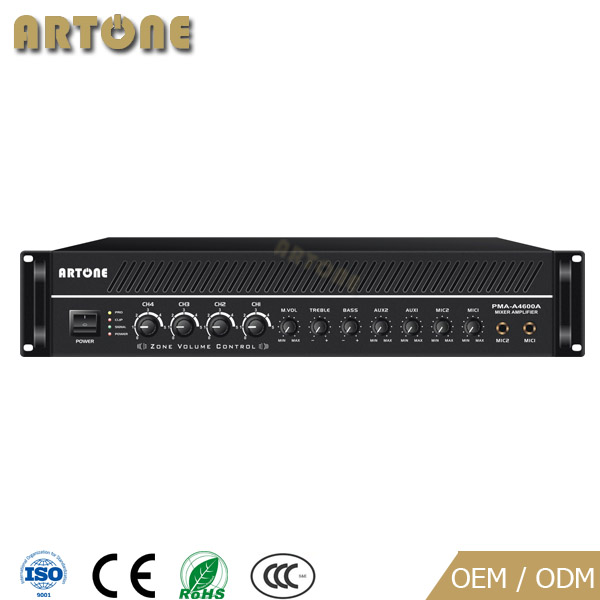

4 Zone Mixer Amplifier PMA-A4080A PMA-A4120A PMA-A4180A PMA-A4240A PMA-A4300A PMA-A4400A PMA-A4500A PMA-A4600A

  • Model: PMA-A4080A PMA-A4120A PMA-A4180A PMA-A4240A PMA-A4300A PMA-A4400A PMA-A4500A PMA-A4600A
  • Power:80W-600W
  • Function:4 Zone Mixer Amplifier
Details

Features

l  4 zone Cost –effective mixer power amplifier;

l  4 zones independent zone volume control;

l  2 MIC, 2 AUX inputs, 1 line output, MIC1 has priority(mute function);

l  Power outputs: 4-16Ω, 70V, 100V., 4 zones outputs;

l  Bass control, treble control, individual volume and master volume control;

l  Protecton(with self-lock function), DC voltage, overload, short circuit.

Specification

Model No.

PMA-A4080A

PMA-A4120A

PMA-A4180A

PMA-A4240A

PMA-A4300A

PMA-A4400A

PMA-A4500A

PMA-A4600A

Rated Power

80W

120W

180W

240W

300W

400W

500W

600W

Speaker Outputs

4-16Ω, 70V, 100V

Line Out

600Ω/1V(0dB)

Input

Mic1,2/600Ω, 2.0mV(-54dB), unbalanced/AUX1,2/10KΩ,250mV(-10dB),unbalanced

Frequency Response

100Hz-16KHz

THD

< 0.1% at 1KHz

S/N Ratio

Mic1,2: 66dB     AUX1,2: 70dB

Tone Ajustment

Bass:±10dB at 100Hz     Treble: ±10dB at 10KHz

Protection

Power on, overload, high temperature, DC voltage & short circuit Protection

Mute

MIC1 has priority

Voltage

AC220/50-60Hz

Power Consumption

120W

140W

210W

320W

370W

500W

650W

750W

Dimension

487mmx 380mmx 90mm

Weight

8.5kg

10kg

11kg

11.5kg

12kg

13kg

16.8kg

19.2kg
