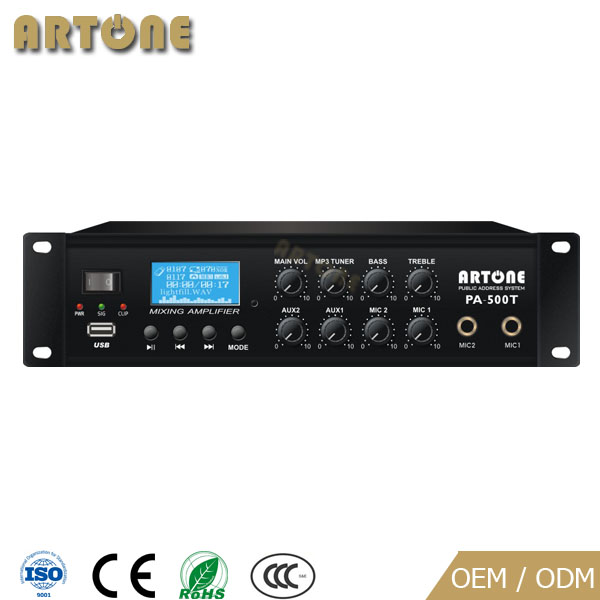

Mini Mixer Amplifier with MP3 FM LED PA-500T

  • Model:PA-500T
  • Power:50W
  • Function:Mini Mixer Amplifier with MP3 FM LED
Details

Features

l  With MP3 player, support MP3 and WMA;

l  Tuner(FM)function;

l  2 AUX inputs, 2 MIC inputs, 1 AUX output;

l  MIC1 has priority(auto mute function);

l  LED display for power, signal and clip;

l  Individual volume control for MIC and AUX input;

l  Master Volume control;

l  Bass and treble control;

l  70V,100V and 8 ohms output;

l  Newly developed 128*64 dots LCD;

l  Remote control and stand by function;

l  4 loop play modes for MP3 player, 5 sound effects for user to choose;

l  Music name , played time, remain time display, EQ display;

l  Protections include power on (delay protection by relay), electronic protection for short-circuit;

Specification

Model No.

PA-500T

Rated Power

50W

Audio Source

MP3 (USB), Tuner (FM), AUX input x 2

Speaker Outputs

4-16Ω, 70V, 100V

Line Out

600Ω/300mV

Input

Mic1,2/600Ω, 2.0mV, unbalanced    AUX1,2/10KΩ,100mV, unbalanced

Frequency Response

100Hz-16KHz

THD

< 0.1% at 1KHz

S/N Ratio

Mic1,2: 66dB     AUX1,2: 70dB

Tone Ajustment

Bass:±10dB at 100Hz     Treble: ±10dB at 10KHz

Protection

Power, DC & short circuit Protection

Mute

MIC1

Voltage

AC220/50Hz

Dimension

250mmx 210mmx 72mm

Power Consumption

70W

Weight

3.0kg
