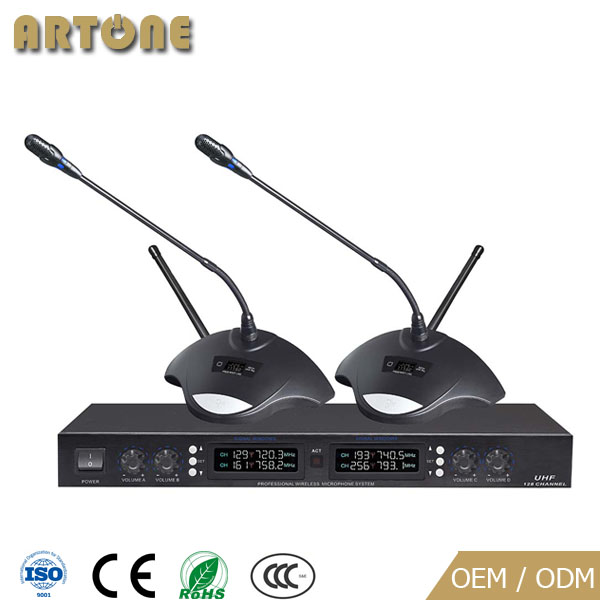

UHF Wireless Microphone CMS-U604

  • Model:CMS-U604
Details

Features

Oscillation: PLL synthesized

Mode: 4 Channel Receiver, 32 signal channel IR pairing, 0.5MHz step per channel

Support 10 groups or 40 mic transmitters use simultaneously

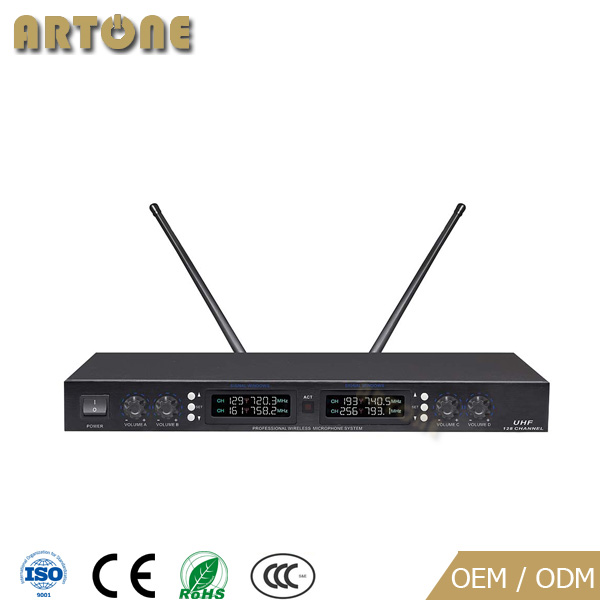

Receiver LCD display shows working channel, frequency, signal indicator,

Carrier Ferquency RangeUHF 500MHz900MHz

Frequency Stability:±0.001%

Max.eviation Range:±50KHz

Modulation ModeFM

S/N Ratio>105dB

T.H.D:<0.5%@1KHz

Sensitivity1.2/UV @S/N=12dB

Power SupplyDC:12V17V

Audio Output Independent Free standing 0400mV     Mixed style 0300mV

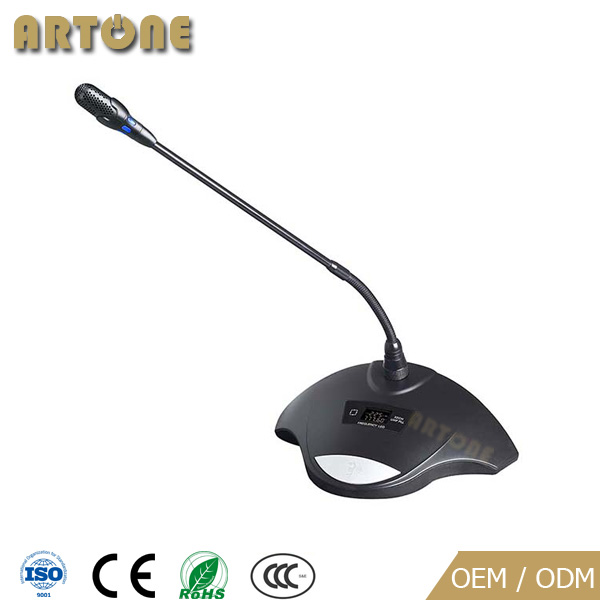

Transmitter parameter

Power SupplyDC 3V 1.5V AA*2

Transmitter LCD display shows working channel, frequency and battery level;

Consume an electricity: 100mA

Carry a frequencyUHF 500MHz900MHz

Frequency stability:±25KHz

S/N Ratio>105dB

F/N Ratio>80dB

Dynamic range:≥100dB

Type capacitance

polar psttern One direction

Frequency Response40Hz20KHz

Sensitivity-47±3dB@1KHz

Specification



Model No.

CMS-U604

Channel

4 Channel

Mode

PLL synthesized

Frequency FM

UHF 500~900 MHz (10 groups)

Audio Output

2 balanced output and 1 mixed unbalanced output

Frequency Stability

Receiver ±0.001% / Mic: ±25KHz

S/N Ratio

>105dB

THD

<0.5%@1KHz

Power Supply

Receiver DC12~17V / Transmitter Mic DC3V (1.5V AAx2)

Mic Type

Capacitance

Mic Polar Pattern

Uni-directivity

Power Consumption

Receiver 3W / Transmitter Mic 100mA

Mic Output

10mW

Mic Battery

6 hours

Cover Distance

30 ~ 70 meter

Frequency Response

40~20KHz

Dimension

Receiver 420 x180x44 / 480x180x44mm (w rackmount kit)

Weight

Receiver 1.6 KG / Mic 495g
