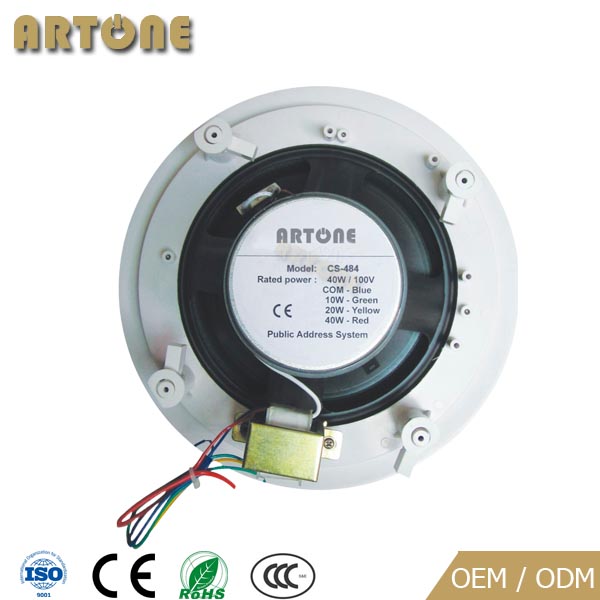

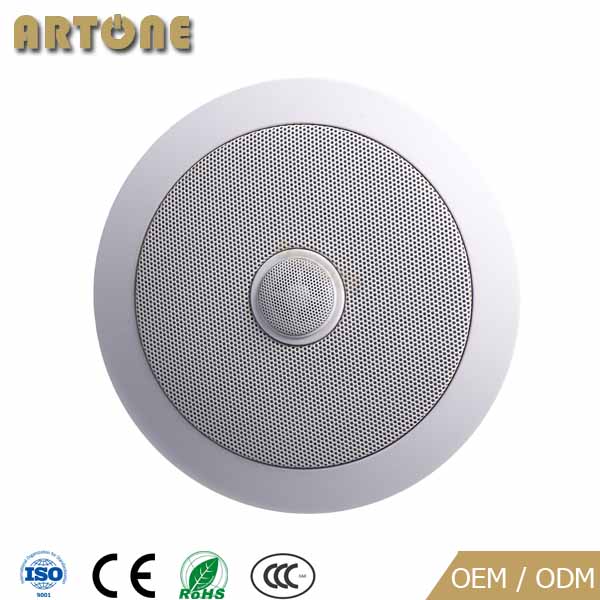

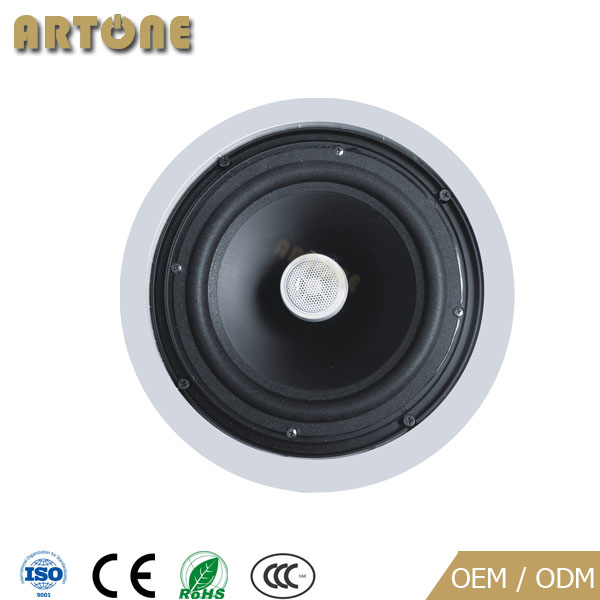

Ceiling Speaker CS-452 CS-463 CS-484

1.coaxial 5.25" 6.5" 8" ceiling speaker 2.ABS material
  • Model:CS-452 CS-463 CS-484
  • Power:20w/30w/40w
  • Function: for commercial audio system or public address system
Details

Ceiling mount speaker, designed in ABS material, with 5.25 inch, 6.5 inch and 8 inch full range speaker, rated power 20W to 40 Watts, use for commercial audio system or public address system (pa system) of input voltage 100 volt. Fast installation with 4 dog ear clamp. It is durable and practical and very competitive to satisfy sound system at economical budget.

Features

coaxial 5.25’’ (CS-452) / 6.5’’ speaker (CS-463) / 8’’ speaker (CS-484);

Rated power 20 Watts (CS-452), 30 Watts (CS-463), 40 Watts (CS-484);

Input voltage 100 Volt;

Sensitivity 87dB  (CS-452) / 88dB (CS-463) / 89dB (CS-484);

Frequency Response 95~20KHz  (CS-452) / 85~18KHz (CS-463) / 50~18KHz (CS-484)

Ceiling mount speaker, dog ear clamp mounting;

ABS material body

Cutout size 170mm  (CS-452) / 200mm (CS-463) / 240mm (CS-484)

Dimension 203 x 80mm (CS-452) / 230 x 90mm (CS-463) / 270 x 105mm (CS-484)

Specification

Model No.

CS-452

CS-463

CS-484

Rated Power / Max Power

20W / 40W

30W / 60W

40W / 80W

Speaker

coaxial 5.25’’ speaker

coaxial 6.5’’ speaker

coaxial 8’’ speaker

Input Voltage

100V Line

Sensitivity

87 dB

88 dB

89 dB

Frequency Response

95-20KHz

85-20KHz

50-18KHz

Mounting Method

Dog ear clamp

Cutout Size

170 mm

200 mm

240 mm

Dimension

203 x 80 mm

230 x 90 mm

270 x 105 mm
