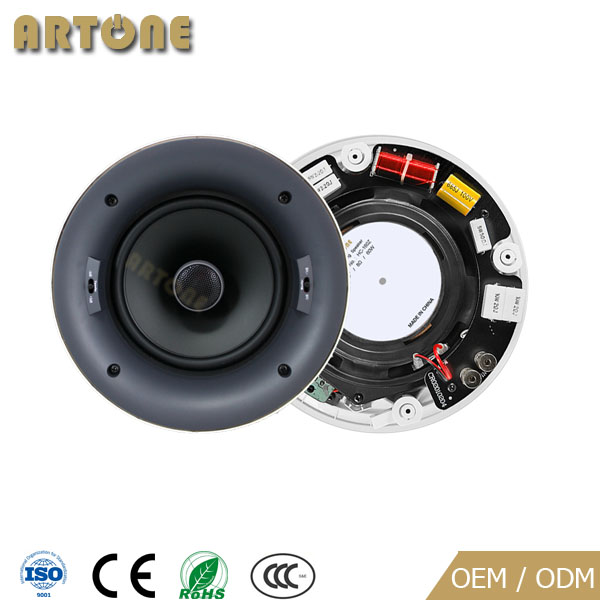

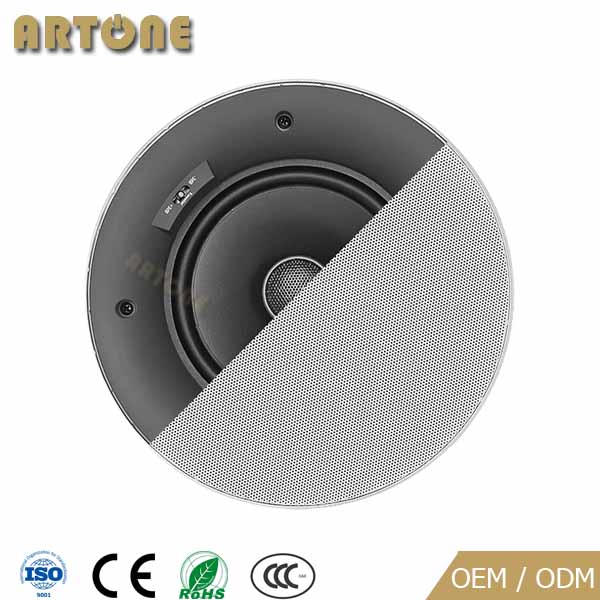

Frameless In-ceiling Speaker HC-160Z & HC-180Z

  • Model:HC-160Z & HC-180Z
  • Power: 30W & 40W @ 8Ω
Details

Features:

Ceiling speaker HC-160Z & HC-180Z is a high quality thin bezel or trimless hifi inceiling speaker, designed in 2-way 6-1/2'' & 8’’ coaxial speaker, thin bezel looking and paintable grill make it ambient to surrounding. The state-of-art crossover makes perfect frequency separation to polypropylene woofer and silk tweeter. The speaker power at 30W & 40W @ 8Ω, and handling power max to 60W & 80W, frequency response 58-20KHz & 50-20KHz, sensitivity 89dB & 90dB (1W/1M), ±3 dB adjust for bass and treble, cutout size 193 & 244 mm, it is ideal speaker for use in background music application, multiroom audio system, inceiling decoration, meeting room/conference room audio purpose, etc.

Specification



Item No.

In Ceiling Speaker HC-160Z

In Ceiling Speaker HC-180Z

Woofer

6-1/2’’ Woofer

8’’ Woofer

Tweeter

3/4’’ Pivot Tweeter

1/2’’ Pivot Tweeter

Impedance

8Ω

8Ω

Handing Power

60W

80W

Frequency Response

58Hz~20KHz

50Hz~20KHz

Sensitivity (1W/1m)

89 dB

90 dB

Cutout Size

193 mm

244 mm
