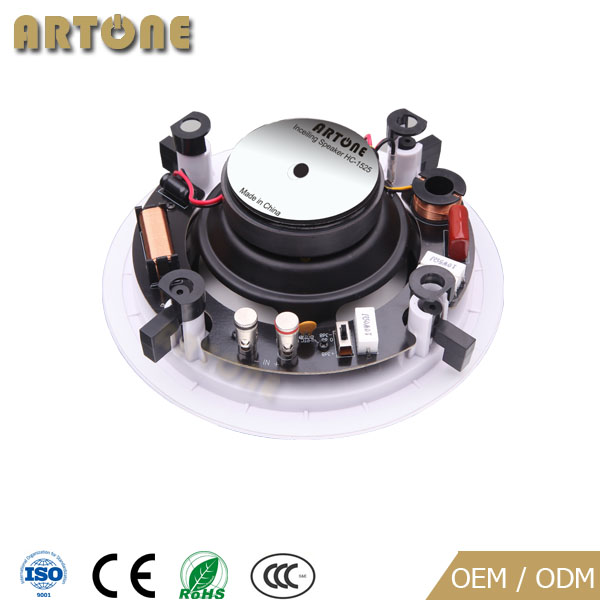

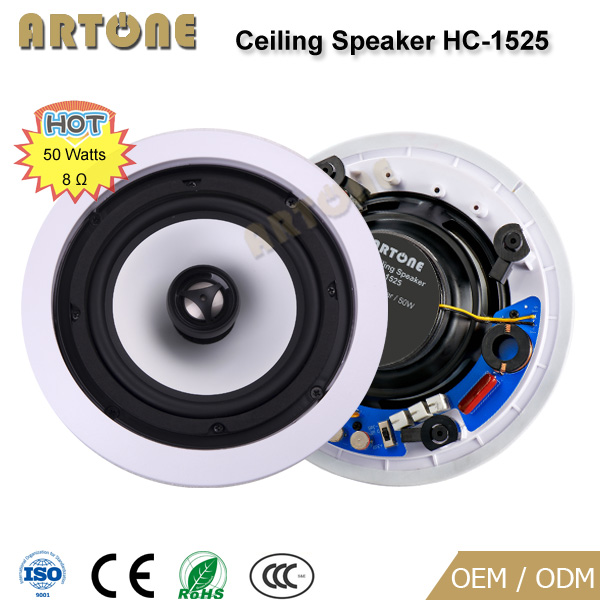

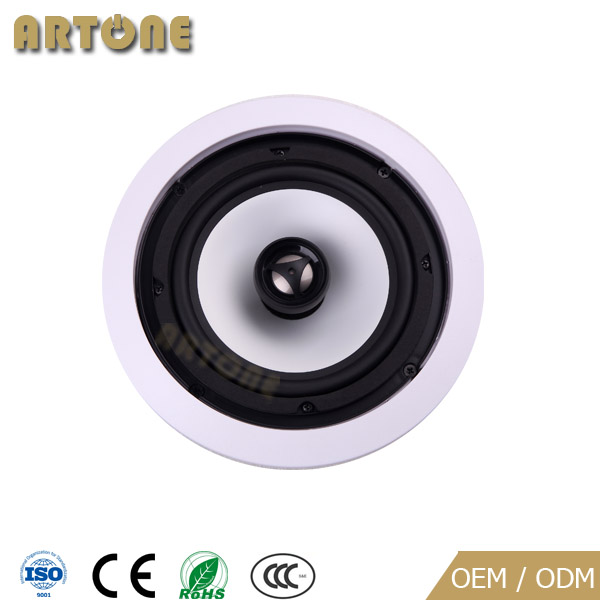

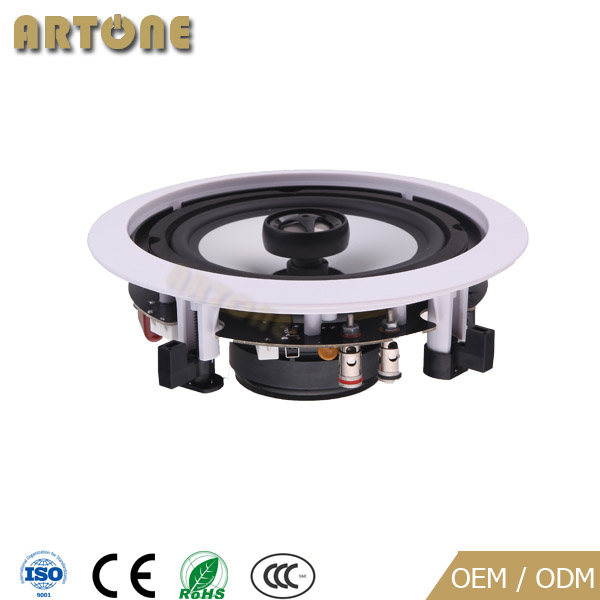

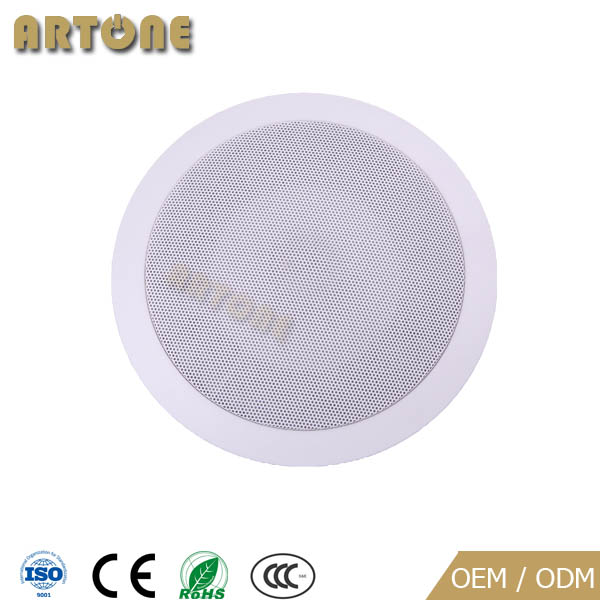

In-ceiling Speaker HC-1525 & HC-1656

  • Model:HC-1525 & HC-1656
  • Power:25W & 35W @ 8Ω
Details

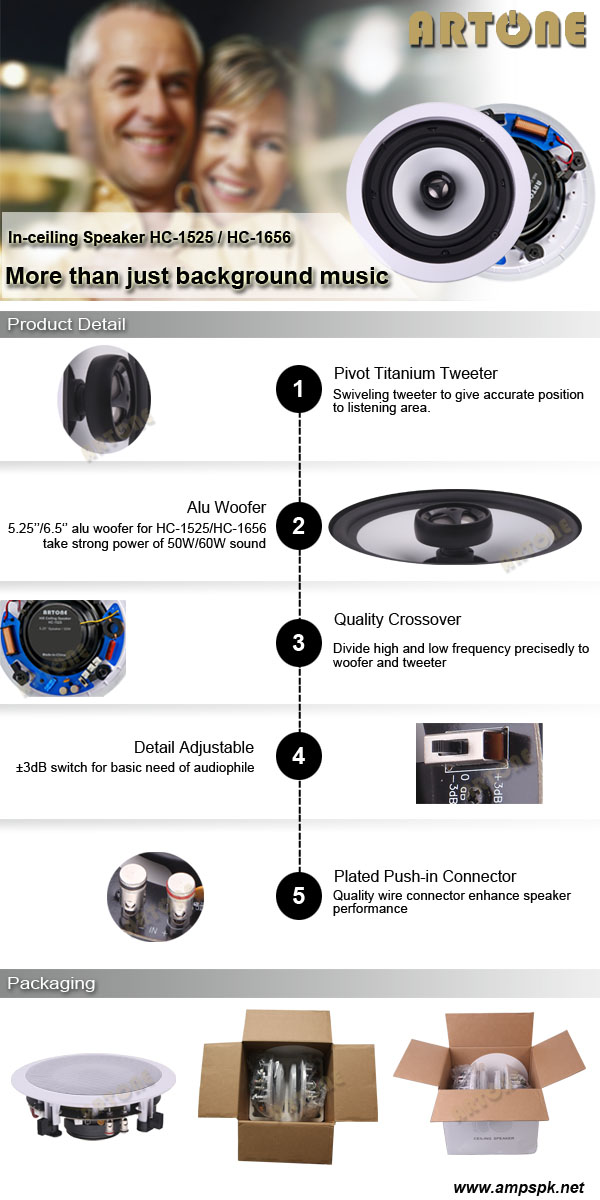

Features:

Ceiling speaker HC-1525 & HC-1656 is a high quality hifi inceiling speaker, designed in 2-way coaxial 5-1/4'' & 6-1/2’’ speaker with 1’’ angle adjustable pivot tweeter, use top selected material of alu woofer is able to sustain strong power from amplifier and express original sound. The state-of-art crossover makes perfect frequency separation to woofer and tweeter. The speaker power at 25W & 35W @ 8Ω, and handling power max to 50W & 60W, frequency response 55-20KHz & 50-20KHz, sensitivity 89dB & 90dB (1W/1M), cutout size 168 & 197 mm, it is ideal speaker for use in background music application, multiroom audio system, inceiling decoration, meeting room/conference room audio purpose, etc.


Specification

Item No.

In Ceiling Speaker HC-1525

In Ceiling Speaker HC-1656

Woofer

5-1/4’’ Alu Woofer

6-1/2’’ Alu Woofer

Tweeter

1’’ Pivot Tweeter

1’’ Pivot Tweeter

Impedance

8Ω

8Ω

Handing Power

50W

60W

Frequency Response

55Hz~20KHz

50Hz~20KHz

Sensitivity (1W/1m)

89 dB

90 dB

Cutout Size

168 mm

197 mm
